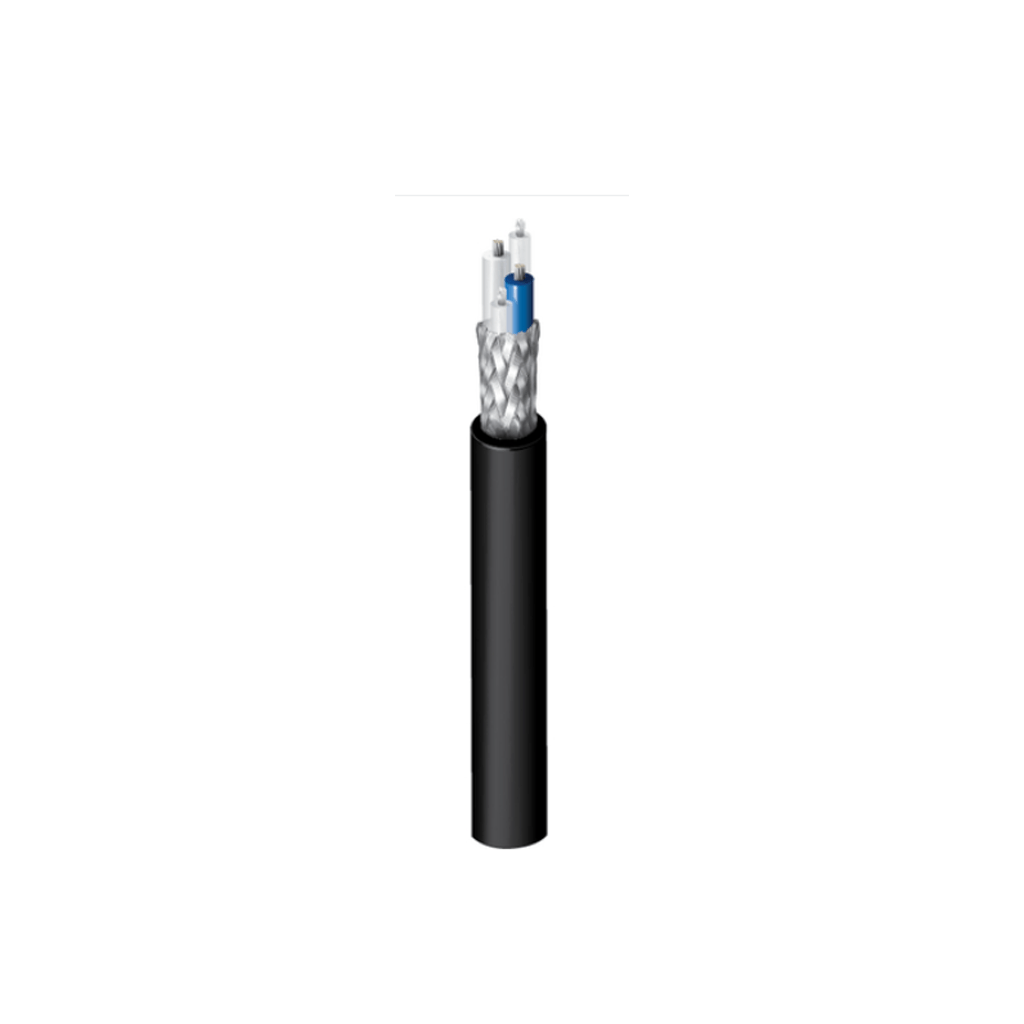

BELDEN 8412P
Plenum Microphone Cable, 2 Conductor 20 AWG, CMP
Product Description
20 AWG, 2 stranded (7×28) high-conductivity TC conductors, FEP Teflon® insulation, TC braid shield (85%), FEP Teflon® jacket
Technical Specifications
| Insulation | ||
| Material | Nom. Insulation Diameter | Color Code |
| FEP – Fluorinated Ethylene Propylene | 0.074 in (1.9 mm) | Dark Blue, Clear |
| Outer Shield | ||
| Shield Type | Material | Coverage |
| Braid | Bare Copper (BC) | 90% |
| Outer Jacket | ||
| Material | Nom. Diameter | |
| FEP – Fluorinated Ethylene Propylene | 0.198 in (5.03 mm) | |
