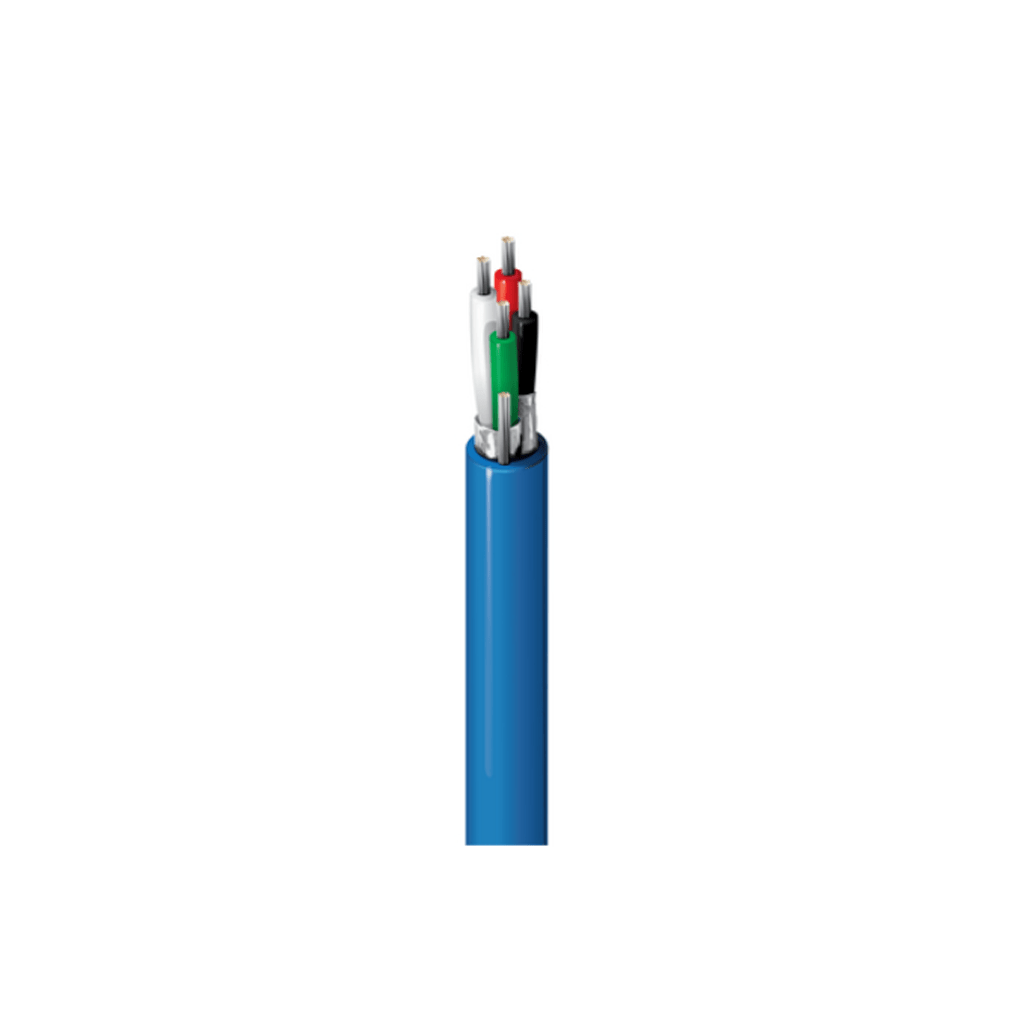

BELDEN 8723SB
Audio & Instrumentation, 2 Pair 22 AWG, TC, Individually Shielded, Shipboard
Product Description
Audio & Instrumentation, 22 AWG stranded (7×30) tinned copper conductors, twisted pairs, polypropylene insulation, individually shielded with 100% Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, LSZH jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PP – Polypropylene | 0.009 in (0.23 mm) | 0.046 in (1.2 mm) | Black & Red, Green & White |
| Inner Shield | ||||
| Element | Shield Type | Material | Coverage | Drainwire Type |
| Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | ||
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 0.034 in (0.86 mm) | 0.196 in (4.98 mm) | ||
