BELDEN 8780
Audio Cable, #16-1pr, TC, O/A Shield, CMG
Product Description

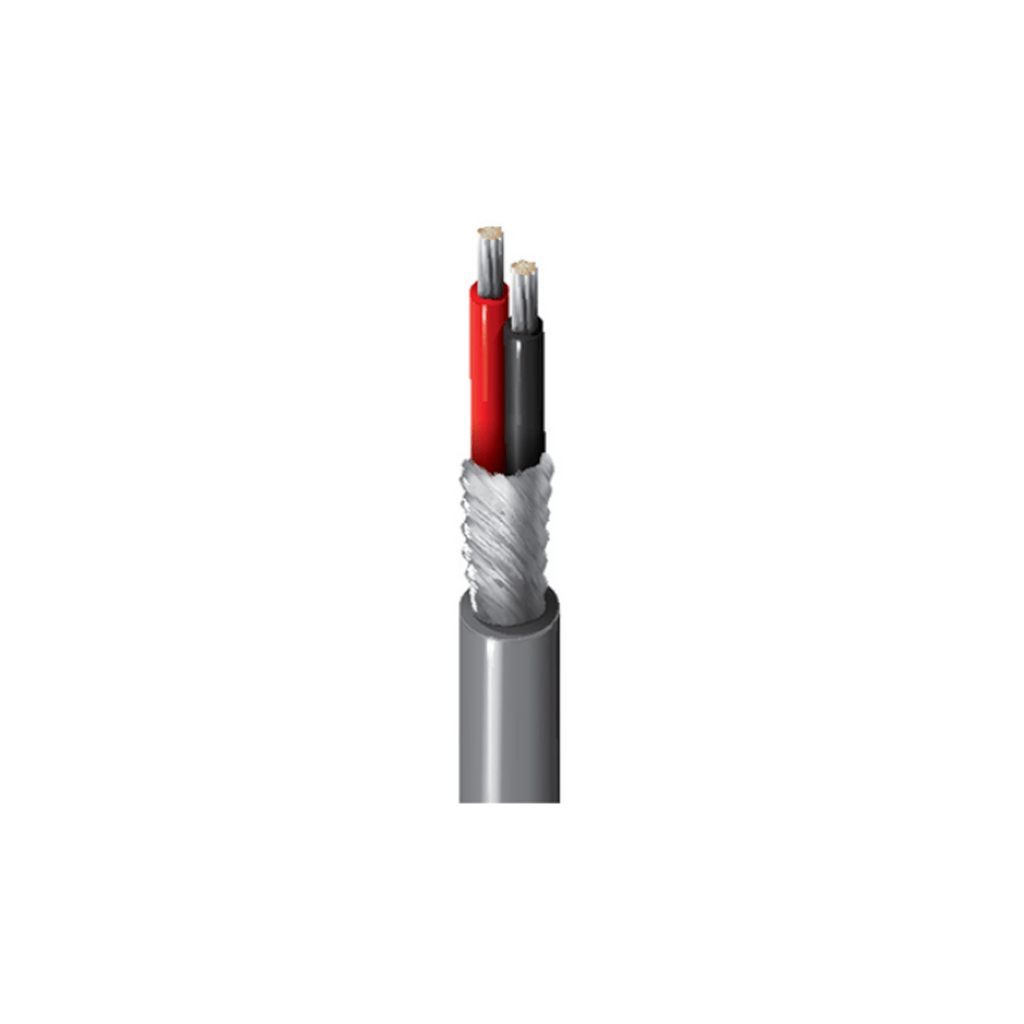

16 AWG stranded (19×29) tinned copper conductors, PVC insulation, twisted pair, tinned copper spiral wrapped shield (85% coverage), PVC jacket.
Technical Specifications
| Insulation | |||
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| PVC – Polyvinyl Chloride | 0.023 in (0.58 mm) | 0.105 in (2.67 mm) | Black and White |
| Outer Shield | |||
| Shield Type | Material | Coverage | |
| Spiral Serve / Screen | Tinned Copper (TC) | 85% | |
| Outer Jacket | |||
| Material | Nom. Thickness | Nom. Diameter | |
| PVC – Polyvinyl Chloride | 0.030 in (0.76 mm) | 0.28 in | |
