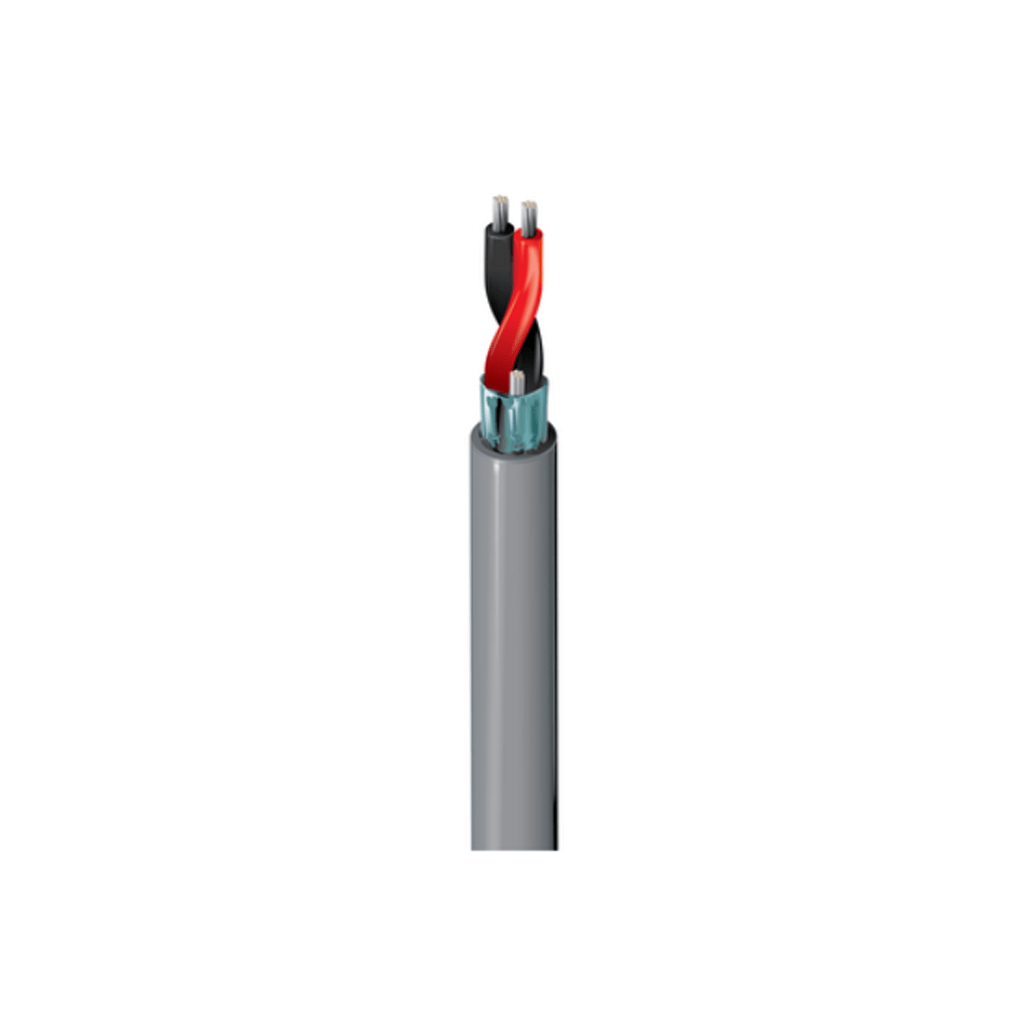

BELDEN 9451
Audio Cable, 1 Pair 22 AWG TC, Shielded, Riser
Product Description
Audio Cable, 1 Pair 22 AWG stranded (7×30) tinned copper pair, polypropylene insulation, Beldfoil® shield, drain, Riser, PVC jacket
Technical Specifications
| Insulation | ||||
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PP – Polypropylene | 0.009 in (0.23 mm) | 0.046 in (1.2 mm) | Black & Red |
| Outer Shield | ||||
| Shield Type | Material | Coverage | Drainwire Type | Notes |
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7×30) TC | Jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield |
| Outer Jacket | ||||
| Material | Nom. Thickness | Nom. Diameter | ||
| PVC – Polyvinyl Chloride | 0.020 in (0.51 mm) | 0.135 in (3.43 mm) | ||
