描述

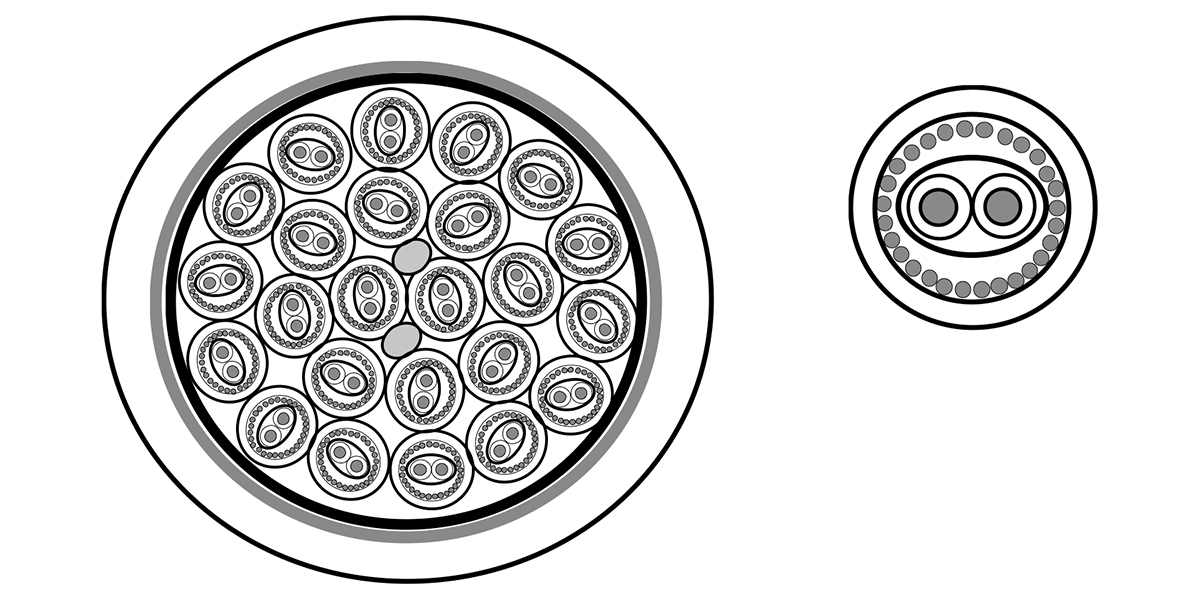

BE46306
AUDIO ANALOG 24 PAIR, 26AWG, ISTP, PVC, STAGE
BE46306 屬Belden線材、UPS 及機櫃產品。傑成系統有限公司（香港防盜）為Belden產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡佈線工程。規格以原廠資料為準。
規格
Conductor
| Size | Stranding | Material |
|---|---|---|
| 26 | 18×38 | TC – Tinned Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE – Polyethylene | 1.05 mm (0.0413 in) | Red & White |
Inner Shield
| Shield Type | Material |
|---|---|
| Tape | Polyester |
| Spiral Serve / Screen | Tinned Copper (TC) |
Outer Shield
| Shield Type | Material |
|---|---|
| Braid | Tinned Copper (TC) |
Inner Jacket
| Material | Nom. Diameter | Color |
|---|---|---|
| PVC – Polyvinyl Chloride | 3.05 mm (0.120 in) | Gray (like RAL 7001) |
| Inner Jacket Table Notes | Elements numbered 1 – 24 |
|---|
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC – Polyvinyl Chloride | 22.40 mm (0.8819 in) |
| Outer Jacket1 Table Notes | Flexible Matte Finish Sheath |
|---|
Electricals
| Max. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Characteristic Impedence | Nom. Velocity of Prop. |
|---|---|---|---|
| 260 Ohm/km | 70 pF/m (21 pF/ft) | 90 Ohm | 66% |
Temperature
| Installation | Storage |
|---|---|
| -5°C To +70°C | -30°C To +70°C |
Bend Radius
| Installation Min. |
|---|
| 224 mm (8.82 in) |
| Environmental Suitability | Indoor |
|---|
| Update and Revision | Revision Number: 0.192 Revision Date: 08-19-2026 |
|---|
