BELDEN BE46959
1 PAIR AES/EBU, 26AWG, ISTP, LSZH, STAGE
Product Description

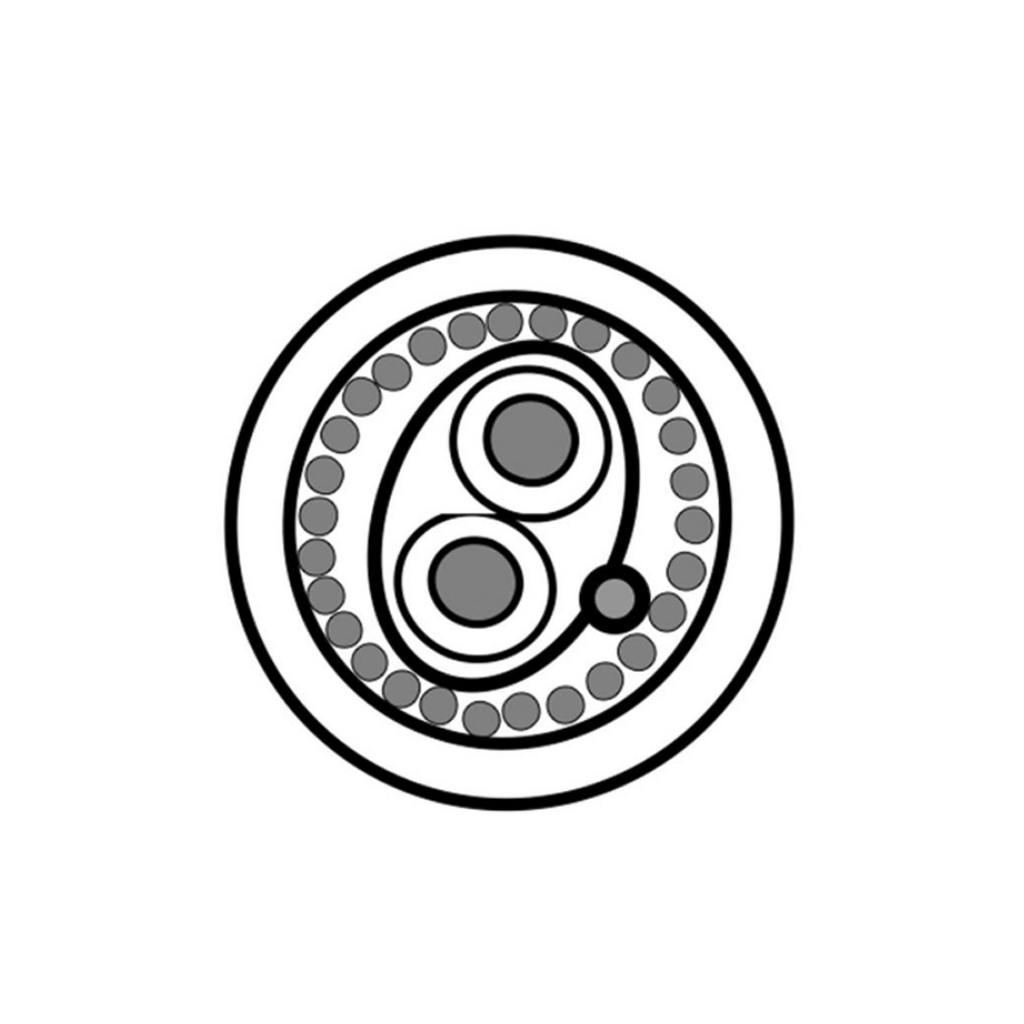

1 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH, STAGE
Technical Specifications
| Insulation | ||
| Material | Nom. Insulation Diameter | Color Code |
| PE – Polyethylene | 1.13 mm (0.0445 in) | White & Blue |
| Inner Shield | ||
| Shield Type | Material | |
| Tape | Polyester | |
| Outer Shield | ||
| Shield Type | Material | |
| Spiral Serve / Screen | Tinned Copper (TC) | |
| Outer Jacket | ||
| Material | Nom. Diameter | |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 3.90 mm | |
