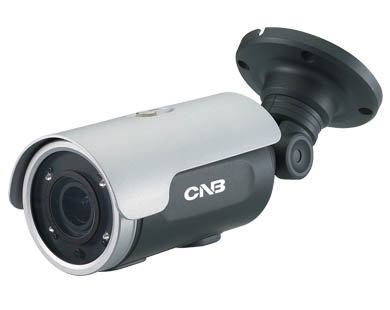

CNB NB22-7MHR Weatherproof Camera

– Fusion IR Full HD Bullet IP Camera
– 1/3” Progressive scan CMOS Sensor
– Dual-Codec (H.264/MJPEG)
– Progressive scan megapixel (2M CMOS)
– Multi profile streaming
(5 different streams per Resolution, Frame, Rate, Codec)
– Digital PTZ, video crop
– Analog video output (CVBS)
– Built-in standard PoE
– Two-way audio communication
– Dark Hunter + Super IR LED
– Compact design & Easy installation
– Vandal proof, Weather proof (IP66)

描述

ModelNB22-7MHR
..[Camera]
Image SensorProgressive scan 1/3 inch CMOS 2M pixels
Full resolution1,920 x 1,080 pixels (Full HD)
Sync. SystemInternal
Lens2.8 ~ 12mm Vari-focal
Day & NightAUTO, DAY ,NIGHT
SensitivityDark Hunter Max – 0.0005 Lux / IR LED on : 0 Lux
Back Light CompensationOn/Off
White BalanceATW(2.000 K ~ 10,000 K)/ MANUAL / PUSH
ExposureDC/ ESC
WDRON / OFF
3D-DNR0~20
Dark HunterAUTO ON (Max. X32) / OFF
Privacy MaskON / OFF (10 Programmable Zone)
Motion DetectionON / OFF (4 Programmable Zone)
Digital ZoomX1 ~ X12
MirrorH/ V/ Rotate
DEFOGON / OFF
OSD / LanguageBUILT IN Internally ( English…)
Super IR LED4EA
..[Video]
CompressionH.264 / MJPEG
Resolution1,920 x 1,080@30fps
Multi-Profile Streaming* 5 Simultaneous video profiles
* Select the codec type, resolution and frame rates for each profile
Intelligent Bit-rate ControlHybrid Bit rate control (VBR+CBR)
PTZDigital PTZ & Video crop
Image SettingText overlay, Privacy mask, De-interlace filter
Motion detection3 regions
..[Audio]
Mono Upstream32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
Mono Downstream64Kbps 16bit μ-law PCM ~ Line-out
..[Network]
Network ProtocolIPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS
Dynamic IPSupported
Security– User ID & Password protection, IP address filtering,
– Digest Authentication, User Access Log
Streaming method-RTSP streaming with proprietary format for control informations
– Standard RTSP streaming
– HTTP streaming
– Onvif Profile-S
..[External Terminals]
LAN10/100BaseT LAN (auto MDIX)
Analog output1 channel D1 CVBS output of the encoding video
Alarm input / outputAlarm I/O (1 Sensor input & 1 Relay output)
Factory ResetSupported
OtherMIC, Line in / Line out / DC 12V in
..[Installation]
Standard PoEIEEE802.3af Supported
..[System Integration]
Intelligent VideoMotion Detection
Alarm TriggersMotion Detection + Sensor Input + Audio Detection
Alarm EventsVideo file upload(FTP), Still image(Email), PTZ preset, Relay output
Alarm Buffer (Audio/Video)‏configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec)‏
..[Client Software]
NVR264ch(free of charge)
Smart App.Android, iOS (free of charge)
..[Operating Environment, Power, Dimensions]
Operating Temperature-10℃ ~ 50℃
Operating Humidity8 ~ 80% RH
PowerDC 12V, 0.6A
DimensionsØ99mm x 252.7mm
Weight1.1kg
CasingAL, PC, IP66
ApprovalsFCC, CE, KCC
Package informationIP camera, CD (User’s guide, Software…)
..[Optional Items]
Local storageMicro SD card
AdapterDC 12V, 1.5A
