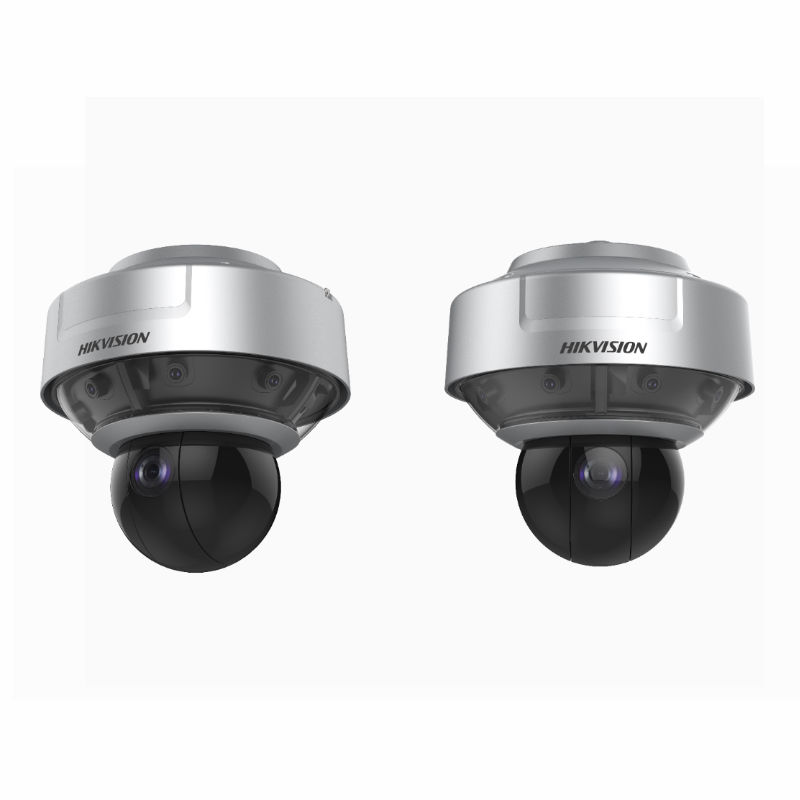

HIKVISION DS-2DP0818ZIX

PanoVu 180

  • 180° splicing image: the image presented includes the full panoramic view covered by the camera;
  • Panoramic camera linked to a PTZ: capturing 180° images with the panoramic camera, as well as close-up images with the PTZ camera;the high speed PTZ can offer the function of fast detail positioning over the panoramic area;
  • A built-in heater provides ultra-low temperature start-up to -40℃;
  • Built-in IR light: IR range of 150 meters provides good visibility in low or even zero-light environments;

描述

Network

Protocols: TCP/IP, IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

API: Open-ended, support ONVIF, support HIKVISION SDK and Third-Party Management Platform

Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

General

Power Supply: 36 VDC

Weight: Approx. 18kg (39.68lb)

Power Consumption: 105 W Max.

Protection Level: IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Working Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F)

Working Humidity: ≤ 90%

Dimension: Φ391.8mm×400.5mm (Φ15.43″×15.77″)

Panoramic Camera

Image Sensor: Four 1/1.8″ Progressive Scan CMOS

Min. Illumination: Color: 0.005 Lux@(F2.0, AGC ON), B/W: 0.0005 Lux@(F2.0, AGC ON)

Lens: 5.0mm/ F2.0

Field Of View: Horizontal : 180°, Vertical: 80°

Smart Image Enhancement: Digital WDR, 3D DNR, HLC

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264

Main Stream Resolution: 20:9 50Hz: 25fps (4096×1800, 3840×1680, 2720×1192) 60Hz: 30fps (4096×1800, 3840×1680, 2720×1192) 20:6 50Hz: 25fps (4096×1200, 3840×1080, 2720×800) 60Hz: 30fps (4096×1200, 3840×1080, 2720×800)

Sub-Stream Resolution: 20:9 50Hz: 25fps (704×320, 512×232) 60Hz: 30fps (704×320, 512×232) 20:6 50Hz: 25fps (704×200) 60Hz: 30fps (704×200)

Third Stream Resolution: 20:9 50Hz: 25fps (2048×896, 1280×560, 704×320, 512×232) 60Hz: 30fps (2048×896, 1280×560, 704×320, 512×232) 20:6 50Hz: 25fps (2048×600, 1280×376, 704×200) 60Hz: 30fps (2048×600, 1280×376, 704×200)

Basic Event Detection: Motion Detection

Smart Event Detection: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection

Tracking PTZ Camera

Image Sensor: 1/1.8″ Progressive Scan CMOS

Min. Illumination: Color: 0.002 Lux@(F1.5, AGC ON), B/W: 0.0002 Lux@(F1.5, AGC ON), 0 Lux with IR

IR: IR distance: 200m; IR brightness and angle are adjustable.

S/N Ratio: ≥ 55 dB

Smart Image Enhancement: 3D DNR, 120 dB WDR, Optical Defog, HLC, Smart IR, EIS

Focal Length: 5.6 to 208mm, 36× optical zoom

Zoom Speed: Approx.6.6s (Optical Wide-Tele)

Horizontal FOV: 62.5° to 1.9° (Wide-Tele)

Min. Working Distance: 10mm to 1500mm (Wide-Tele)

Aperture Range: F1.5 to F4.5

Pan And Tilt Range: Pan: 360°, Tilt: -15° to 90°

Pan And Tilt Speed: Pan Manual Speed: 0.1°/s to 210°/s (Configurable), Pan Preset Speed: 240°/s Tilt Manual Speed: 0.1°/s to 150°/s (Configurable), Tilt Preset Speed: 200°/s

Preset Number: 300

Patrol: 8 patrols, up to 32 presets per patrol

Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern

Park Action: Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan

Scheduled Task: Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/ Dome Reboot/ Dome Adjust/ Aux Output

Power-Off Memory: Support

3D Positioning: Support

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264

Main Stream Resolution: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream Resolution: 50Hz: 25fps (704×576, 640×480, 352×288) 60Hz: 30fps (704×480, 640×480, 352×240)

Third Stream Resolution: 50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288) 60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240)

Target Filtering: People and vehicle are classified and filtered separately.

Basic Event Detection: Motion Detection, Video Tampering Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted, Illegal Login

Smart Event Detection: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection

Face Capture: Detect and capture faces and upload face pictures

System Interface

Network Interface: 1 self-adaptive Ethernet interface

Fiber Cable: 1 1000M FC interface, TX1310/ RX1550nm wavelength, 20 km transmission distance

RS-485: Half duplex, HIKVISION, Pelco-P and Pelco-D self-adaptive

Alarm Input/ Output: 7-ch alarm input and 2-ch alarm output, support alarm linkage: Preset/ Patrol Scan/ Memory Card Recording/ Aux Output/ Notify Surveillance Center/ Upload to FTP/ Send Email

Audio Input/ Output: 1-ch audio input and 1-ch audio output.

Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC (up to 128GB)

Camera Module

One-Touch Link: Support

Tracking Mode: Manual/ Auto/ Mix

Multiple Targets Tracking: Support

Number Of Targets: Up to 30 targets can be detected at the same time.

Target Switch Time: <1s

Calibration: Manual/ Auto

Tracking Duration: Up to 60 s

Sensitivity Settings: Support
