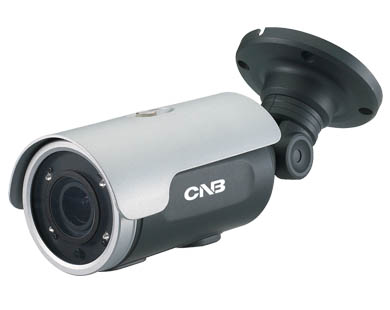

CNB NB52-7PR Weatherproof Camera

– 5MP H.265 Bullet IR IP Camera
– 1/1.8” Progressive scan CMOS Sensor
– Multi Codec (H.264/H.265/MJPEG)
– Progressive scan megapixel (5M CMOS)
– Multi profile streaming
(5 different streams per Resolution, Frame, Rate, Codec)
– Digital PTZ, video crop
– Analog video output (CVBS)
– Built-in standard PoE
– Two-way audio communication
– Build-in D/N (TDN), Super IR LED
– Compact design & Easy installation
– Vandal proof, Weather proof (IP66)

Description

Model NB52-7PR
..[Camera]
Image Sensor Progressive scan 1/1.8 inch CMOS 5M pixels
Full resolution 2,592 x 1,944 pixels (5M)
Sync. System Internal
Min. illumination 0.1 Lux (Color,DSS On),0.03 Lux (IR LED On)
S/N Ratio 50dB or more
White Balance AWB (2,000K ~ 10,000K)
DSS Supported
WDR Supported
Lens 3.6 ~ 10mm Varifocal
Day & Night Supported (TDN, IR LED)
Super IR LED 4EA
..[Video]
Compression method Multi Codec (H.265 / H.264 / MJPEG)
Resolution 2,592 x 1,944@30fps
Multi-Profile Streaming * 5 simultaneous video profiles
* Select the codec type, resolution and frame rates for each profile.
Intelligent Bit-rate Control Hybrid Bit Rate control (VBR+CBR)
PTZ Digital PTZ & Video crop
Image Setting Text overlay, Privacy mask, De-interlace filter
Motion detection 3 regions
..[Audio]
Mono Upstream 32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
Mono Downstream 64Kbps 16bit μ-law PCM ~ Line-out
..[Network]
Network Protocol IPv4/v6, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS
Dynamic IP Supported
Security – User ID & Password protection, IP address filtering,
– Digest Authentication, User Access Log
Streaming method -RTSP streaming with proprietary format for control informations
– Standard RTSP streaming
– HTTP streaming
– Onvif Profile-S
..[External Terminals]
LAN 10/100BaseT LAN (auto MDIX)
Analog output 1 channel D1 CVBS output of the encoding video
Alarm input / output Alarm I/O (1 Sensor input & 1 Relay output)
Factory Reset Supported
Other MIC, Line in / Line out / DC 12V in
..[Installation]
Standard PoE IEEE802.3af Supported
..[System Integration]
Intelligent Video Motion Detection
Alarm Triggers Motion Detection + Sensor Input + Audio Detection
Alarm Events Video file upload(FTP), Still image(Email), Relay output
Alarm Buffer (Audio/Video) configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec)
..[Client Software]
NVR2 64ch (free of charge)
Smart App. Android, iOS (free of charge)
..[Operating Environment, Power, Dimensions]
Operating Temperature -10℃ ~ 50℃
Operating Humidity 8 ~ 80% RH
Power DC 12V, 0.6A
Dimensions Camera : Ø99mm x 252.7mm
Weight Camera : 1.1Kg
Casing AL, PC, IP66 (Camera portion only)
Approvals FCC, CE, KC
Package information IP camera, CD (User’s guide, Software…)
..[Optional Items]
Local storage Micro SD card
Adapter DC 12V, 1.5A
