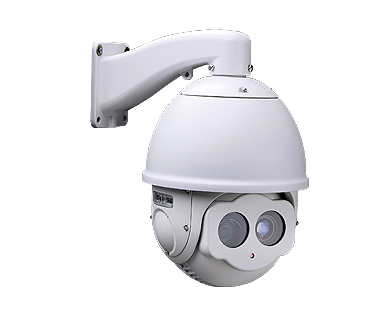

CNB NP24-8P30ZW(P) PTZ Camera

– H.264 / H.265 IP Camera
– 2.0 megapixel, Optical 30x zoom, Digital 32x zoom
– 1920 x 1080 High resolution image display
– 4 Multi-Profile Streaming
– Infrared rays for night maximum 300m recognizable (150*210mm size)
– Ultra-speed rotation : 360° Endless 200°/sec
– KC, CE, IP66, ONVIF certified
– Support Two-Way Audio
– Auto Flip

Description

Model NP24-8P30ZW(P)
..[Camera]
Image Sensor 1/3” CMOS Sensor 2.0 Mega Pixel
Resolution 1920 x 1080 @ 60fps
Scanning System Progressive
Electronic Shutter speed 1/30(25) ~ 1/60,000s
Min. Illumination Color: 0.001Lux, B/W : 0.00004Lux , Laser on: : 0 Lux
S/N Ratio More than 50dB(AGC OFF)
Day/Night Auto(ICR) / Color / B/W
WDR / BLC / HLC OFF / ON
Motion Detection OFF / ON
White Balance Auto, Preset, One-Push, Manual
Gain Control(AGC) OFF/ON
DNR Auto/Manual
Privacy Masking Up to 24 areas
Focal Length 4.3mm~129mm(30x Optical zoom), Digital 32x
Max Aperture F1.6 ~ F5.0
Focus Control Auto / One-Push / Manual
Angle of View D: 71.3° ~ 2.58°
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -5° ~ 90°
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 360°/s; Tilt: 200°/s
Preset 128Preset (Max256)
Protocol Pelco-D
Laser IR Distance Camera Zoom with IR Synchronize Max 300m
Compression H.265 / H.264 / MJPEG
Multi-Profile Streaming – 4 simultaneous video profiles
– Select the codec type, resolution and frame rates for each profile.
Intelligent Bit-Rate Control Hybrid Bit Rate control (VBR+CBR)
Mono Upstream 32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC/Line-in
Mono Downstream 64Kbps 16bit μ-law PCM ~ Line-out
Network Protocol IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS
Dynamic IP Supported
Security – User ID & Password protection, IP address filtering
– Digest Authentication, User Access Log
Streaming method – RTSP streaming with proprietary format for control Informations
– Standard RTSP streaming
– HTTP streaming
– Onvif Profile S
LAN 10/100BaseT LAN (auto MDIX)
Video output BNC(1.0Vp-p/75Ω), PAL / NTSC
Memory Slot Micro SD, Max 64GB
RS-485 1 Port
Alarm 4/2 channel In/Out
Other MIC, Line in / Line out / DC 12V in
Power Supply DC 12V, 5A (±10%)
Working Environment -10 ºC ~ 50 ºC / Less than 90% RH
Ingress Protection IP66
Dimensions Φ230(mm) x 348(mm)
Weight 4.6kg
