Description

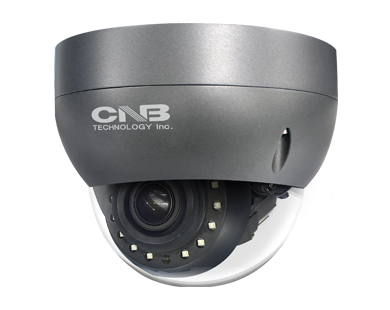

| Model | NP55-6P3R |
| ..[Camera] | |
| Image Sensor | 1/1.8 Inch Progressive scan 5Mega CMOS |
| Effective Pixels | 2592 x 1944 pixels (5M) |
| Scanning System | Progressive scan |
| S/N Ratio | More than 50dB(AGC Off) |
| Lens | 3.6 ~ 10mm Motorized Vari-focal(F 1.5) |
| Angular of View | Diagonal 136˚(W)~ 51˚(T) |
| IR Led | High Power Led 10ea(850nm, 50˚) |
| Min illumination | 0.05Lux (Color), 0 Lux (IR LED On) |
| Panning/Tilting Ratio | Pan: 0˚ ~ 356˚ ; Tilt : 26˚ ~ 90˚ |
| ..[Function] | |
| AGC | Auto |
| Flickerless | On/Off |
| Shutter speed | Max. 1/30,000 |
| White Balance | AWB |
| Backlight Compensation | DWDR |
| WDR Range | 70dB |
| DNR | 2DNR , 3DNR Supported |
| Day & Night | Auto(ICR), IR LED |
| PRIVACY | 1 Supported |
| Anti-fog | Supported (5 Step) |
| Factory reset | Supported |
| ..[Interface] | |
| LAN | RJ-45(10/100BaseT), Auto MDIX |
| Analog Video | 1ch D1 CVBS Output |
| Alarm | 1 Sensor input, 1 Relay output |
| Audio | 1 Mic Line input, 1 Line Output |
| ..[Network] | |
| Video Compression | Multi-Coded(H.265 / H.264 / MJPEG) |
| Max Resolution | 2592 x 1944@30fps |
| Multi-Profile Streaming | 4 simultaneous video profiles |
| Intelligent Bit-Rate Control | VBR, CBR |
| Motion detection | 3 regions |
| Audio Communication | Two-way Communication |
| Mono Upstream | 32Kbps G.726 ADPCM 64Kbps 16bit μ-law PCM (MIC / Line-in) |
| Mono Downstream | 64Kbps G.71116bit μ-law PCM(Line-out) |
| IP(Internet Protocol) | IPv4 |
| Network Protocol | IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS |
| Dynamic IP | Support |
| Security | -User ID & Password protection -IP address filtering -Digest Authentication User Access Log |
| Streaming method | -RTSP streaming with proprietary formatfor control informations -Standard RTSP streaming -HTTP streaming -Onvif Profile-S |
| Intelligent Video | Motion Detection |
| Alarm Triggers | Intelligent Video + Sensor Input |
| Alarm Events | Video file upload(FTP), Still Image(Email), Relay output |
| Alarm Buffer(Audio/Video) | configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec) |
| Client Software | NVR2, Smart App(Android, iOS) |
| ..[General] | |
| Operating Temperature | -10℃~ 50℃ |
| Operating Humidity | 0 ~ 80% RH |
| Power | DC12V, Max. 0.6A, IEEE802.3af PoE |
| Dimensions (Øx H) | Ø134 x 119mm |
| Material / IP Ratio | AL, PC / IP66 |
| Weight | Approx. 750g |
