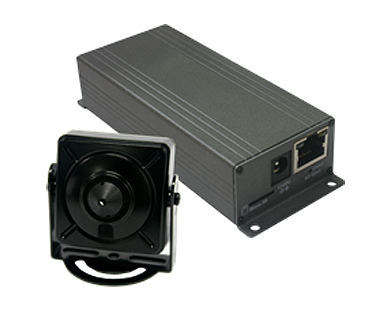

CNB NS21-0MH Specialty Camera

– Full HD Miniature IP Camera
– 1/3” Progressive scan CMOS Sensor
– Dual-Codec (H.264/MJPEG)
– Progressive scan megapixel (2M CMOS)
– Multi profile streaming
(5 different streams per Resolution, Frame, Rate, Codec)
– Digital PTZ, video crop
– Built-in standard PoE
– Two-way audio communication
– Compact design & Easy installation

Description

Model NS21-0MH
..[Camera]
Image Sensor Progressive scan 1/3 inch CMOS 2M pixels
Full resolution 1,920 x 1,080 pixels (Full HD)
Sync. System Internal
Lens Pinhole 4.3mm, F2.0
Day & Night AUTO, DAY, NIGHT
Sensitivity Dark Hunter Max – 0.0005 Lux
Back Light Compensation ON / OFF
White Balance ATW(2.000K ~ 10,000K)/ MANUAL / PUSH
Exposure DC / ESC
WDR ON / OFF
3D-DNR DAY : 0~20, NIGHT : 0~20
Dark Hunter AUTO ON (Max. x32) / OFF
Privacy Mask ON / OFF (10 Programmable Zone)
Motion Detection ON / OFF (4 Programmable Zone)
Digital Zoom X1 ~ X12
Mirror H / V / Rotate
DEFOG ON / OFF
OSD / Language BUILT IN Internally( English…)
..[Video]
Compression method Simultaneous Dual Codec (H.264 / MJPEG)
Resolution 1,920 x 1,080@30fps
Multi-Profile Streaming * 5 Simultaneous video profiles
* Select the codec type, resolution and frame rates for each profile
Intelligent Bit-rate Control Hybrid Bit rate control (VBR+CBR)
PTZ Digital PTZ & Video crop
Image setting Text overlay, Privacy mask, De-interlace filter
Motion detection 3 regions
..[Audio]
Mono Upstream 32Kbps G.726 ADPCM, 64Kbps 16bit μ-law PCM ~ MIC / Line-in
Mono Downstream 64Kbps 16bit μ-law PCM ~ Line-out
..[Network]
Network Protocol IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS
Dynamic IP Supported
Security – User ID & Password protection, IP address filtering,
– Digest Authentication, User Access Log
Streaming method – RTSP streaming with proprietary format for control informations
– Standard RTSP streaming
– HTTP streaming
– Onvif Profile-S
..[External Terminals]
LAN 10/100 Base-T LAN (auto MDIX)
Alarm input / output Alarm I/O (1 Sensor input & 1 Relay output)
Factory Reset Supported
Other Mic, Line in / Line Out / 12VDC
..[Installation ]
Standard PoE IEEE802.3af Supported
..[System Integration]
Intelligent Video Motion Detection
Alarm Triggers Motion Detection + Sensor Input + Audio Detection
Alarm Events Video file upload(FTP), Still Image(Email), Relay output
Video Buffer(Audio/Video)? configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec)?
..[Client Software]
NVR2 64ch (free of charge)
Smart App. Android, iOS (free of charge)
..[Operating Environment, Power, Dimensions]
Operating Temperature -10?C ~ 50?C
Operating Humidity 0 ~ 80% RH
Power DC 12V, 0.5A
Dimensions(W x H x D) Camera : 37mm x 37mm x 25.17mm
Encoder Box : 45.6mm x 25mm x 114mm
Weight Camera : 35.5g
Encoder Box: 115g
Casingt AL, PC
Approvals FCC, CE, KC
Package information IP camera, CD (User’s guide, Software…)
..[Optional Items]
Local storage Micro SD card
Adapter DC 12V, 1.5A
