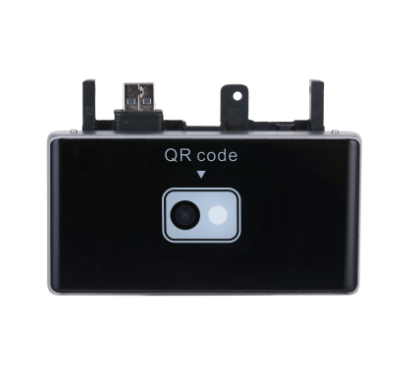

Dahua ASF7K-Q Access Control Extension Module

> Elegantly designed with plastic, glass and metal.
> IP65 rated.
> Works with the ASI7213K-W access controller as an extension module to grant access to areas through QR code.

Basic

Casing Material

Metal; plastic; glass plate

Function

Unlock Mode

QR code

Port

USB

1 × Type-C port

General

Power Supply

5 VDC, 1 A (powered by the access controller)

Protection

IP65

Power Consumption

<3 W (standby), <5 W (working)

Product Dimensions

78.3 mm × 116.0 mm × 28.5 mm (3.08″ × 4.57″ × 1.12″) (H × W × D)

Packaging Dimensions

Carton: 153 mm × 136 mm × 55 mm (6.02″ × 5.35″ × 2.17″) (H × W × D) Protection box: 310 mm × 485 mm × 295 mm (12.20″ × 19.09″ × 11.61″) (H × W × D)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

0%–90% (RH), non-condensing

Operating Altitude

0 m–1,300 m (0 ft–4,265.09 ft)

Operating Environment

Outdoor

Gross Weight

0.26kg (0.57 lb)
