> 304 stainless steel cabinet with a thickness of 1.2 mm.
> Includes 8 pairs of IR detectors.
> Brushless DC servomotor.
> Automatically locks when the unlock time expires.
> Sound and light alarm with adjustable volume.
> Acrylic arm with a length of 600 mm.
> MCBF (Mean Cycles between Failures) is higher than 3 million times.
> Supports normally opening the fire passage and outputting alarm signals.
> Offers mechanical anti-squeeze and IR anti-squeeze.
> Supports anti-collision.
> Offers 4 security level modes that are suitable for different scenes.
> Features 9 combinations of passage modes. You can build the combinations using authorized, prohibited and free for entry and exit.
> Supports configuring the speed it opens and closes, passing time for people, and delaying the closing time.
> Supports second authentication, and memorizing passing data for entry and exit.
> Supports people counting.
> The sound and light alarm are triggered when the system detects events such as intrusion, tailing, reverse intrusion, staying in area, abnormal unlock, jumping the barrier, barrier failure and IR fault.
> Supports combining multiple authentication methods together such as card reader board, face, fingerprint, QR code and CPU card to create a variety of authentication methods.
> Comes with an energy storage capacitor. When the device is turned off, the arm automatically opens.

System

Main Processor

Embedded Processor

Basic

Product Type

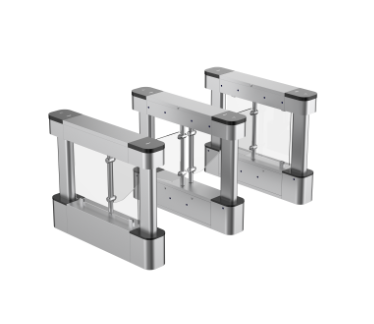

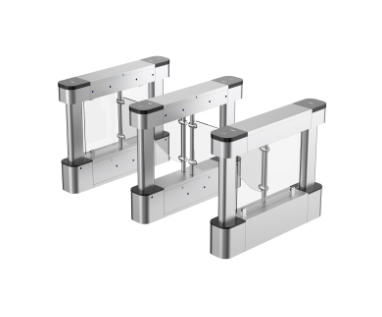

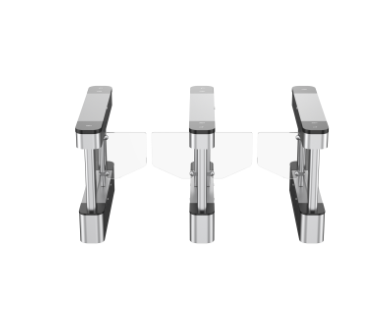

Swing turnstile

Motor

Brushless DC motor

Status Indicator Light

Yes

Voice Prompt

Yes

Casing Material

SUS 304

Function

Online Update

Yes

Performance

MCBF

3 million

Passage Width

600 mm (23.62″)

Max Custom Passage Width

1,100 mm (43.31″)

Input Port

1 × RS-485 input port

Passing Speed

20–60 people/min

Unlock/Lock Speed

0.8 s

Pairs of IR Detectors

8

Cabinet Thickness

1.2 mm (0.05″)

Top Cover Thickness

1.2 mm (0.05″)

Barrier Material

Acrylic

Barrier Thickness

10.0 mm (0.39″)

Port

Network Port

1 × 10 Mbps/100 Mbps self-adaptive Ethernet port

Capacity

User Capacity

100000

Record Capacity

100000

General

Vandal-proof Rating

Glass panel: IK06 Stainless steel cabinet: IK08

Protection

IPX4

Power Consumption

Single turnstile: ≤30 W (standby), ≤120 W (working)

Product Dimensions

1,200 mm × 200 mm × 980 mm (47.24″ × 7.87″ × 38.58″) (L × W × H)

Product Dimensions

1,200 mm × 140 mm × 980 mm (47.24″ × 5.51″ × 38.58″) (L × W × H)

Packaging Dimensions

1299 mm × 332 mm × 1,173 mm (51.14″ × 13.07″ × 42.24″) (L × W × H)

Gross Weight

48 kg ± 2.5 kg (105.82 lb ± 5.51 lb)

Operating Temperature

–25 °C to +70 °C (–13 °F to +158 °F)

Operating Humidity

5%–90% (RH), non-condensing

Operating environment

Indoor; Outdoor
