描述

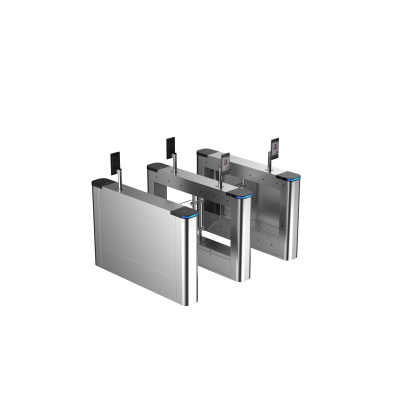

ASGB5XXY-X
Swing barrier
ASGB5XXY-X 屬大華門禁產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
規格
System
| Main Processor |
Embedded Processor |
Basic
| Product Type |
Swing Barrier |
| Motor |
Brushless DC motor |
| Status Indicator Light |
Three color indicator lights |
| Voice Prompt |
Yes |
| Casing Material |
SUS304 |
Function
Performance
| MCBF |
≥ 5 million times |
| Card Reading Distance |
0 cm–3 cm (0"–1.18") |
| Max Custom Passage Width |
Acrylic:1100 mm (43.31");Stainless steel:1100 mm (43.31") |
| Input Port |
RS-232 serial port |
| Passing Speed |
20–60 people/minute |
| Unlock/Lock Speed |
≥0.5 s |
| Pairs of IR Detectors |
12 pairs |
| Cabinet Thickness |
1.2 mm (0.05") |
| Top Cover Thickness |
1.2 mm (0.05") |
| Barrier Material |
Acrylic/Stainless steel |
| Number of Face Module Installation Holes |
0 |
| Number of Access Controllers |
1 |
| Card Swiping |
Yes |
Capacity
| User Capacity |
100000 |
| Card Capacity |
100000 |
| Record Capacity |
100000 |
Port
| Network Port |
1 × 10/100 Mbps self-adaptive Ethernet port |
General
| Vandal-proof Rating |
IK06, IK08 |
| Power Supply |
100–240 VAC, 1.5 A |
| Protection |
IPX4 |
| Power Consumption |
≤10 W (standby)，≤130 W (working) |
| Product Dimensions |
1,500 mm × 200 mm × 980 mm (59.06" × 7.87" × 38.58") |
| Module Protruding Size |
0 mm |
| Packaging Dimensions |
1,630 mm × 330 mm × 1,120 mm (64.73" × 12.99" × 44.09") |
| Gross Weight |
80 kg ± 2.5 kg (187.40 lb ± 5.51 lb) |
| Operating Temperature |
–25 °C to +70 °C (–13 °F to + 158 °F) |
| Operating Humidity |
5%–90% (RH), non-condensing |
| Operating Environment |
Indoor;outdoor |
| Storage Temperature |
0 °C to +40 °C (+32 °F to + 104 °F) |
| Storage Humidity |
30%–75% (RH), non-condensing |
