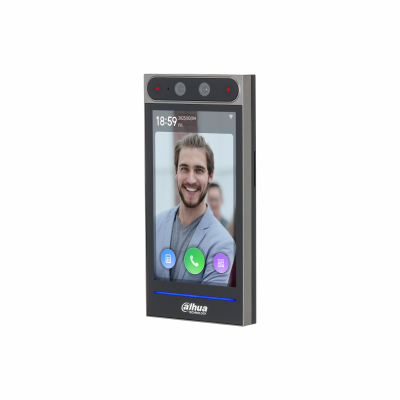

ASI7213G-WG2
Dahua 7-inch 4G Face Recognition Access Controller
ASI7213G-WG2 屬大華門禁產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
規格
System
| Main Processor | Embedded Processor |
|---|---|
| Button Type | Touch button |
| Network Protocol | IPv4;RTSP;UDP;P2P;IPv6;RTP;TCP;SIP |
| OSDP Protocol | Yes |
| Interoperability | ONVIF;CGI |
| SDK and API | Yes |
Basic
| Product Type | Standalone |
|---|---|
| Display Screen | 7-inch display screen |
| Screen Type | Capacitive Touchscreen |
| Screen Resolution | 600 (H) × 1024 (V) |
| Camera | 4 MP+2 MP CMOS HD dual camera |
| WDR | 120 dB |
| Light Compensation | Auto IR |
| Voice Prompt | Yes |
| Speaker | Yes |
| Casing Material | Glass; PC; PC+GF |
Function
| Verification Method | Card;Password;QR Code;Face Recognition;Bluetooth |
|---|---|
| Sub-Module Expansion | Yes |
| Sub-Module Verification Method | Card swiping;Fingerprint;QR Code |
| Door Open Notification Mode | Yes |
| Frequency Range | 2400–2483.5 MHz |
| Max. Transmission Power | ≤20 dBm@2400–2483.5 MHz |
| Period List | 128 groups |
| Holiday Period | 128 groups |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Network Mode | Supports 4G |
| 4G Frequency Band | FDD:B1/3/5/7/8/20/28; TDD:B38/40/41 |
| Bluetooth | Yes |
| Bluetooth Standard | BLE5.4 |
| Advertisement Playing | Plays advertisements in video and image format |
| Peripheral Card Reader | Supports 1 × RS-485 card reader; Supports 1 × Wiegand card reader |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Multi-factor Authentication | Yes |
| Capture Function | Yes |
| Web Configuration | Yes |
| Auto Registration | Yes |
RFID
| Card Type | IC card;Desfire card (EV3,Compatible with Dahua card by default);Felica card |
|---|---|
| Modulation Type | AM |
| Frequency Range | 13.56 MHz |
| Max. Transmission Power | 42 dBuA/m@10 m |
Network
| Max. Transmission Power | ≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz; ≤20 dBm@5250–5350 MHz; ≤27 dBm@5470–5725 MHz; ≤14 dBm@5725–5850 MHz |
|---|---|
| Wi-Fi | Yes |
| Wireless Standard | IEEE 802.11b/g/n/a/ac/ax |
| Wireless Frequency Range | 2400–2483.5 MHz; 5150–5350 MHz; 5470–5725 MHz; 5725–5850 MHz |
| Wireless Security Encryption | WPA/WPA2;WPA-PSK/WPA2-PSK |
Performance
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
|---|---|
| Face Recognition Height Range | 0.9 m–2.4 m (2.95 ft–7.87 ft) |
| Face Recognition Distance | 0.3 m–3.0 m (0.98 ft–9.84 ft) |
| Face Recognition Accuracy | 99.9% |
| Face Recognition Time | 0.1 s |
User
| User (Card) Type | Common users; VIP users; patrol users; guest users; blocklist users; other users; custom users 1; custom users 2 |
|---|
Capacity
| Face Image Capacity | 100,000 |
|---|---|
| User Capacity | 100,000 |
| Card Capacity | 500,000 |
| Password Capacity | 100,000 |
| Record Capacity | 300,000 |
Port
| RS-485 | 1 port |
|---|---|
| RS-232 | 1 port |
| Wiegand | 1 channel (input or output, configurable) |
| USB | 1 × USB 2.0 port |
| Network Port | 1 × 10/100/1000 Mbps self-adaptive Ethernet port |
| Alarm Input | 2 × switch quantity |
| Alarm Output | 1 channel |
| Alarm Linkage | Yes |
| Doorbell | Yes, shared with alarm output port |
| Exit Button | Yes |
| Door Status Detection | Yes |
| Lock Control | 2 channels |
| Audio Port | Yes |
| Power Output Port | Yes (12 V, 1.0 A) |
| Audio Output Port | Yes |
Alarm
| Anti-pass Back | Yes |
|---|---|
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
General
| Power Adapter | Optional |
|---|---|
| Power Supply | 12 VDC, 2 A |
| Protection | IP65 |
| Power Consumption | ≤24 W |
| Product Dimensions | 219.0 mm × 106.3 mm × 20.8 mm (8.62" × 4.19" × 0.82") (H × W × D) |
| Packaging Dimensions | 297.0 mm × 163 mm × 71 mm (11.69" × 6.42" × 2.80") (H × W × D) |
| Transport Package Dimensions | 390 mm × 320 mm × 360 mm (15.35" × 12.60" × 14.17") (H × W × D) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) (DC 12 V Power Supply) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Altitude | 0 m–1,300 m (0 ft–4,265.09 ft) |
| Operating Environment | Indoor;Outdoor |
| Gross Weight | 0.80 kg (1.76 lb) |
| Accessory | Included: Wall mount bracket |
| Installation | Wall Mount;Floor Bracket Mount;Desk Bracket Mount;Turnstile Mount;86 mm Junction Box Mount |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 30%–75% (RH), non-condensing |
