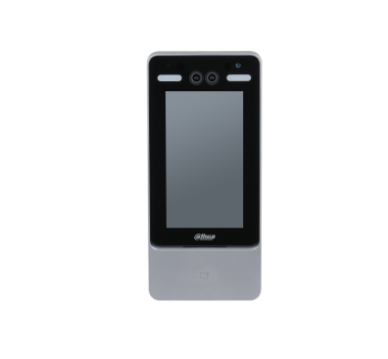

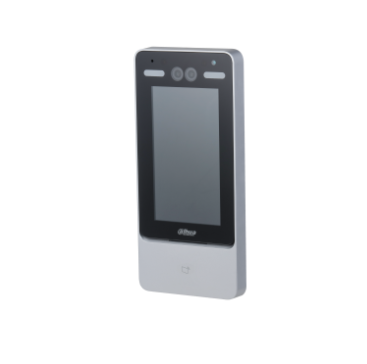

Dahua ASI7213Y-V3 Face Recognition Access Controller


Face Recognition Access Controller

> 7 inch IPS display, resolution 1024×600

> Support face unlock, IC card unlock, and password unlock; unlock by period

> With face detection box; the largest face among faces that appear at the same time is recognized first; the maximum face size can be configured on the web

> 2MP wide-angle WDR lens; with auto/manual fill light

> Face-camera distance: 0.3 m–2.0 m; human height: 0.9 m–2.4 m

> With face recognition algorithm, the access controller can recognize more than 360 positions on human face

> Face verification accuracy>99.5%; face comparison speed 0.35s per person; low false recognition rate

> Support profile recognition; the profile angle is 0°–90°

> Holds 50, 000 users, 50, 000 faces, 50, 000 cards, 50, 000 passwords, and 50 administrators

> Support liveness detection

> Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card exceeding threshold alarm , and more

> Support general users, patrol users, VIP users, guest users, and the disabled users

> With 4 unlock status display modes

Main ProcessorEmbedded Processor
Internet ProtocolIPv4, RTSP, RTP, TCP, UDP, P2P
OSDP ProtocolYes
SDK and APISupport SDK
Display7 inch IPS
Screen TypeCapacitive touch screen
Camera2 MP CMOS camera
Light CompensationAuto white light
Auto IR light
Status Indicator1 indicator light. Red: Error; Green: Normal; Blue: Working.
Voice PromptYes
Housing MaterialPC+ABS
Unlock ModeCard/remote/password/face unlock and unlock through their combinations;
Card Reading TypeIC card
Period List128
Holiday Period128
First-Card UnlockYes
Remote VerificationYes
Peripheral Card Reader1 RS-485, 1 Wiegand
Multiple Card AuthenticationYes
Real-Time SurveillanceYes
Web ConfigurationYes
Card reading distance1cm–5cm
Face Recognition RangeFace-camera distance: 0.3 m–2.0 m;
Human height: 0.9 m–2.4 m
Face Verification Accuracy>99.5%
Face Recognition Time0.35s
User Capacity50, 000
Face Image Capacity50, 000
Card Capacity50, 000
Password Capacity50, 000
Record Capacity100, 000 records
Wiegand1 input/output
USB1 USB2.0 port
Ethernet1 10M/100M Ethernet Port
Alarm Input2 (Switch quantity)
Alarm Output2 (Relay)
Alarm LinkageYes
Exit Button1
Door Status Detection1
Lock Control1
Tamper AlarmYes
Door Sensor TimeoutYes
Illegal Card Exceeding ThresholdYes
Power SupplyProvided
Power Supply ModeDC 12V 2A
Power Consumption12W
Production Dimensions283.0mm×130.0mm×36.9mm (11.14″×5.12″×1.45″)
Packaging DimensionsController packaging: 380mm×235mm×124mm (14.96″×9.25″×4.88″)
Protective case: 494mm×402mm×275mm (19.45″×15.83″×10.83″)
Working Temperature-10°C to +55°C (+14°F to +131°F)
Working Humidity0%RH–90%RH (non-condensing)
Working EnvironmentIndoor
Gross Weight1.8kg (3.97 lb)
Installation MethodWall mounted
