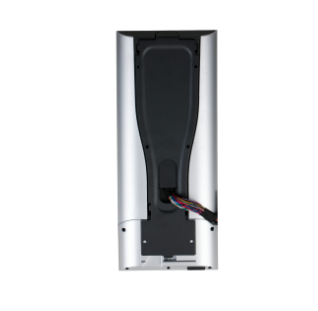

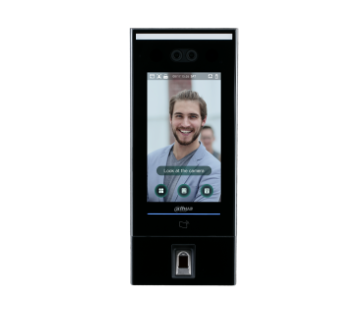

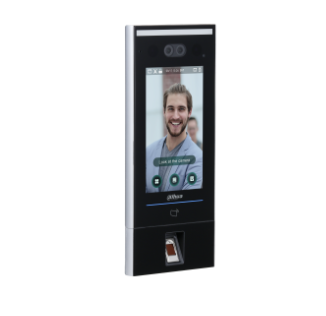

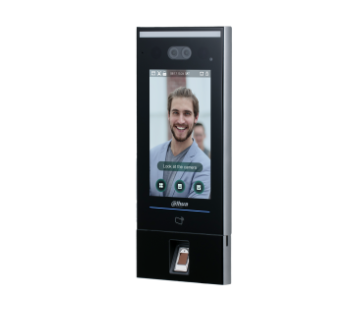

Dahua ASI7214X Face Recognition Access Controller

描述

Face Recognition Access Controller

> 2.5D curved screen

> 7 Inch LCD display with resolution of 1024×600

> 2 MP CMOS, WDR

> Vehicle level LCD whose working temperature is -30°C to 50°C

> IP65 (Silicone sealant is needed. For details, see the quick start guide.)

> Auto fill light reduces light pollution

> Can hold 100,000 users, 100,000 face images,10,000 fingerprints, 100,000 cards, 100,000 password, 50 administrators, and 300,000 records

> Support face, fingerprint, IC card, password unlock and unlock through their combinations

> With face detection box; the largest face among faces that appear at the same time is recognized first; the maximum face size can be configured on the web

> Face-camera distance: 0.3 m–2.0 m; human height: 0.9 m–2.4 m (lens-ground distance: 1.4 m)

> With face recognition algorithm, the access controller can recognize more than 360 positions on human face

> Support liveness detection

> Face recognition speed: 0.2 s per face

> Accurate recognition in backlight and front light

> Various unlock status display modes protect user privacy

> Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card exceeding threshold alarm

> Support general users, patrol users, VIP users, guest users, and special users

System

Main Processor

Embedded Processor

Internet Protocol

IPv4, RTSP, RTP, TCP, UDP, P2P

OSDP Protocol

Yes

Interoperability

ONVIF; CGI

SDK and API

Support SDK

Basic

Display

7 inch display

Screen Type

Capacitive screen

Resolution

600(H)×1024(V)

Camera

1/2.8″ 2MP CMOS high definition WDR dual camera

WDR

120dB

Light Compensation

Auto white light
Auto IR light

Status Indicator

1 indicator light. Red: Error; Green: Normal; Blue: Working

Voice Prompt

Yes

Housing Material

Aluminium alloy/tempered glass/PC

Function

Unlock Mode

Card/Remote/Fingerprint/Password/Face unlock and unlock through their cmbinations

Card Reading Type

IC card

Period List

128

Holiday Period

128

First-Card Unlock

Yes

Remote Verification

Yes

Peripheral Card Reader

1 RS-485, 1 Wiegand

Multiple Authentication

Yes

Real-Time Surveillance

Yes

Web Configuration

Yes

Performance

Card Reading Distance

1cm–3cm

Face Recognition Range

Face-camera distance: 0.3 m–2.0 m Human height: 0.9m–2.4 m

Face Verification Accuracy

≥99.5%

Face Recognition Time

0.2s

Fingerprint Sensor Type

Capacitive

Fingerprint Verification Mode

1: N

Fingerprint Comparison Time

≤1.5s

Capacity

User Capacity

100, 000

Face Image Capacity

100, 000

Fingerprint Capacity

10, 000

Card Capacity

100, 000

Password Capacity

100, 000

Record Capacity

300, 000 records

Port

RS-485

1

RS-232

1

Wiegand

1 (input or output)

USB

2 USB2.0 port

Ethernet

1 1000M Ethernet Port
1 10M/100M Ethernet Port

Alarm Input

2 (Switch quantity)

Alarm Output

2 (Relay)

Alarm Linkage

Yes

Exit Button

1

Door Status Detection

1

Lock Control

1

Alarm

Anti-Passback

Yes

Tamper

Yes

Duress

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

Illegal Card Exceeding Threshold

Yes

Duress Fingerprint

Yes

General

Power Supply

Provided

Power Supply Mode

DC 12V 2A

Protection Grade

IP65 (Silicone sealant is needed. For details, see the quick start guide.)

Power Consumption

24W

Product Dimensions

250.6mm×129.0mm×30.5mm(9.87″×5.08″×1.20″)

Packaging Dimensions

Controller packging: 380mm×235mm×124mm (14.96″×9.25″×4.88″)
Protective case: 494mm×402mm×275mm (19.45″×15.83″×10.83″)

Working Temperature

-30°C to +50°C (-22°F to +122°F)

Working Humidity

0%RH–90%RH (non-condensing)

Working Environment

Indoor and outdoor

Gross Weight

2.0kg (4.41 lb)

Installation Method

Wall mounted

Certification

CE/FCC
