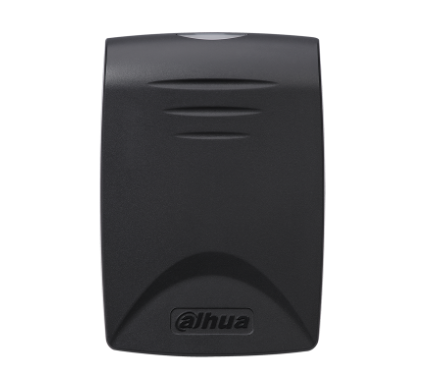

Dahua ASR1100B ASR1100B-D Water-proof RFID Reader

> Support RS485, Wiegand34 protocol
> 13.56MHz(Mifare)
> 125KHz(EM-ID)
> Water-proof design
> An indicator light with red, green, and blue light
> Watch dog function ensure device free from halting
> Surface mounted installation
> IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Technical Specification

Mode

ASR1100B

ASR1100B-D

System

Main Processor

8 Bit

Read

Read Format

13.56MHz

125KHz

Read Range

1cm–9cm (max.)

Reading time

<0.1s

Interface

To Controller

RS485, Wiegand34(Wiegand 26 optional)

General

LED Display

Blue backlight

Beep Tone

Buzzer

Ingress protection

IP67, water resistant

Power Supply

9V–15V DC/100mA

Operating Temperature

-30°C to +60°C

Working Humidity

≤95%

Dimension(W×D×H)

72mm×102mm×18mm

Weight

0.2kg

Working Environment

Outdoor

Certificates

CE

Yes

FCC

Yes
