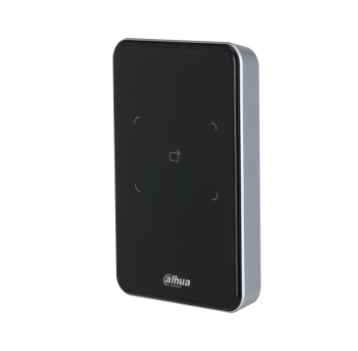

Dahua ASR2100A ASR2100A-D Access Reader

描述

Access Reader

> PC material, acrylic panel and IP66, suitable for indoor and outdoor use

> Support contactless recognition of IC card (Mifare card)

> Support card unlock

> Support RS485 and Wiegand communication

> Support buzzer and indicator prompt

> Support anti-tampering alarm

> The built-in watchdog can detect and control abnormal operation status of the equipment and perform recovery processing to ensure the long- term operation of the equipment

> All connection ports have overcurrent and overvoltage protection

Basic

Product Type

Card reader

Buzzer

Yes

Casing

PC/acrylic panel

Function

Unlock Mode

Card swiping

Card Type

IC card/ID card

Performance

Response Time

0.1 s

Card Reading Distance

0 cm–5 cm (0″–1.97″)

Port

RS-485

1 channel

Wiegand

1 output channel

Alarm

Tamper Alarm

Yes

General

Power Supply

12V 0.5A DC

Protection

IP66 (silicon sealant is needed, see the manual)

Power Consumption

Standby ≤ 0.9W, working ≤1.7W

Product Dimensions

123 mm × 86 mm × 15 mm (4.84″ × 3.38″ × 0.59″)

(L × W × H)

Packaging Dimensions

185 mm × 163 mm × 71 mm (7.28″” × 6.41 × 2.80″)

(L × W × H, 1 in inner carton)
578 mm × 383 mm × 349 mm (22.76″ × 15.08″ × 13.74″”) (L × W × H, carton)

Operating Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

5%RH–95% (non-condensing)

Operating Environment

Indoor; outdoor

Gross Weight

0.35 kg (0.77 lb)

Installation

Surface mount

Certifications

CE; FCC
