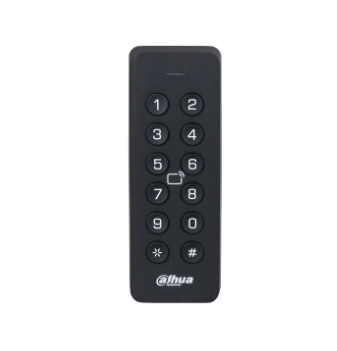

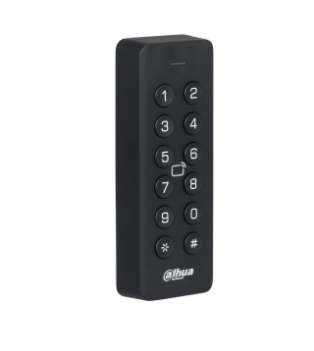

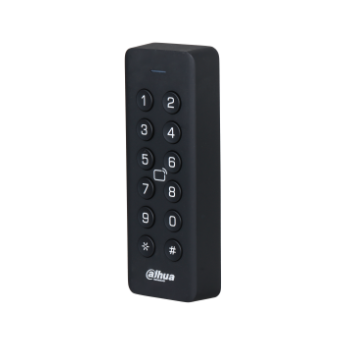

Dahua ASR2101H-D Access Reader

描述

Access Reader

> Card unlock and password unlock.

> RS-485 and Wiegand 34 communication (Wiegand 26 can be configured).

> Prompts using the buzzer and indicator light.

> Tamper alarm.
> Watchdog monitors and controls the device when it behaves
> All the connection ports have overcurrent and overvoltage protection.
> IP66 rated.

System
OSDP ProtocolYes
Button TypeMechanical
Basic
Product TypeCard reader
BuzzerYes
BacklightYes
Casing MaterialPC + ABS
Function
Unlock ModeCard, password
Card TypeID card
Performance
Response Time0.1 s
Card Reading Distance0 cm–6 cm (0″–2.36″)
Port
RS-4851
Wiegand1 channel output
Alarm
Tamper AlarmYes
General
Power Supply12 VDC, 0.5 A
ProtectionIP66
Power Consumption≤ 0.48 W (standby), ≤ 1.2W (working)
Product Dimensions127 mm × 46 mm × 20 mm (5.00″ × 1.81″ × 0.79″)
Packaging Dimensions139 mm × 73 mm × 48 mm (5.47″ × 2.87″ × 1.89″)
Operating Temperature–30 °C to +70 °C (–22 °F to +158 °F)
Operating Humidity≤ 95% (RH)
Operating EnvironmentOutdoor
Gross Weight104 g (0.23 lb)
InstallationSurface Mount
