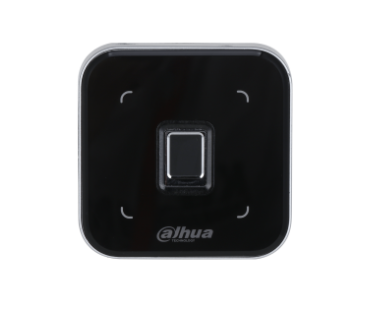

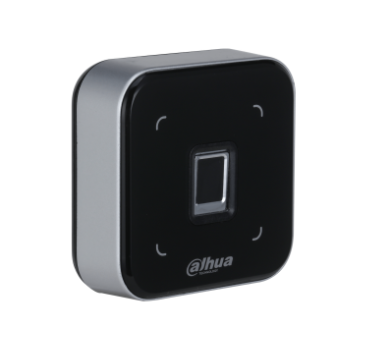

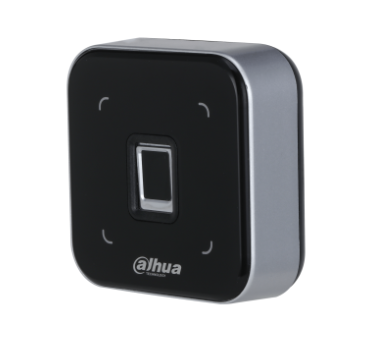

Dahua ASR2102A ASR2102A-D Access Reader

描述

Access Reader

> PC material, acrylic panel and IP65, suitable for indoor and outdoor use

> Support contactless recognition of IC card (Mifare card)

> Support card/fingerprint unlock

> Support RS-485 communication protocol

> Support buzzer and indicator prompt

> Support anti-tampering alarm

> The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment

> All connection ports have overcurrent and overvoltage protection

Basic

Product Type

Fingerprint Card Reader

Buzzer

Yes

Casing

PC/acrylic panel

Function

Unlock Mode

Card swiping/fingerprint
Multiple unlocking modes

Card Type

IC card/ID card

Performance

Response Time

0.1 s

Card Reading Distance

0 cm–5 cm (0″–1.97″)

Fingerprint Sensor Type

Capacitive fingerprint sensor

Fingerprint Verification Mode

1:N

Fingerprint Recognition Time

1.5 s

Capacity

Fingerprint Capacity

3000

Port

RS-485

1 channel

Alarm

Tamper Alarm

Yes

General

Power Supply

12V 0.5A DC

Protection

IP65 (silicon sealant is needed, see the manual)

Power Consumption

Standby ≤ 1.0W, working ≤ 1.7W

Product Dimensions

70 mm × 70 mm × 26 mm (2.76″ × 2.76″ × 1.02″)

(L × W × H)

Packaging Dimensions

110 mm × 97 mm × 90 mm (4.33″ × 3.82″” × 3.54″)

(L × W × H, 1 in inner carton)
578 mm × 313 mm × 204 mm (22.76″ × 12.32″ × 8.03″) (L × W × H, carton)

Operating Temperature

–20°C to +65°C (–4°F to +149°F)

Operating Humidity

5%RH–95% (non-condensing)

Operating Environment

Indoor; outdoor

Gross Weight

0.17 kg (0.37 lb)

Installation

Surface mount

Certifications

CE; FCC
