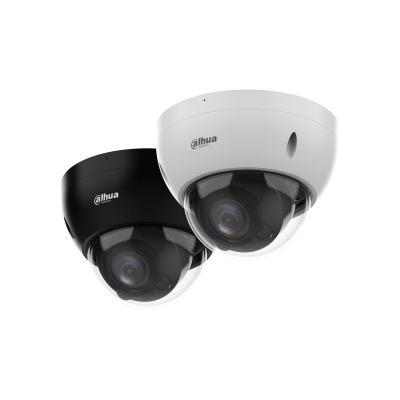

DAHUA IPC-HDBW2441R-ZAS

DAHUA IPC-HDBW2441R-ZAS

查詢價錢

4MP IR Vari-focal Dome WizSense Network Camera

> 4-MP 1/2.9″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps and supports 2560 × 1440 (2560 × 1440)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out (Only – ZAS supports); audio: 1 in, 1 out (Only – ZAS supports); supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 and IK10 protection.
> SMD Plus.

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

WhatsApp 查詢此型號 預約免費勘察
  • 持牌安裝（保安公司牌照 1507）
  • 原廠行貨，原廠保用
  • 全港免費上門勘察
分類: , , , , 標籤: ,

描述

大華 IPC-HDBW2441R-ZAS 是 4MP 紅外電動變焦半球網絡鏡頭（WizSense 系列），1/2.9 吋 CMOS，最高解像度 2688 × 1520，紅外距離 40 米。香港防盜為安裝商及經銷商，規格以原廠為準。

相關方案：大華閉路電視安裝、閉路電視攻略。

DAHUA IPC-HDBW2441R-ZAS

4MP IR Vari-focal Dome WizSense Network Camera

Specifications

Camera
Image Sensor 1/2.9″ CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.006 [email protected] (Color, 30 IRE)
0.0006 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 40 m (131.23 ft) (IR LED)
Illuminator On/Off Control Auto; Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View H: 104°–29°;
V: 54°–16°;
D: 125°–34°
Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 64.0 m (209.97 ft) 25.6 m

(83.99 ft)

 12.8 m

(41.99 ft)

 6.4 m

(20.99 ft)
T 210.0 m (688.97 ft) 84.0 m

(275.59 ft)

 42.0 m

(137.80 ft)

 21.0 m

(68.90 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+

Smart H.264+
Video Frame Rate Main stream: 2688 × 1520@(1–20 fps )/2560 × 1440@(1-25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Manual;Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; PCM
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only – ZAS supports); SMD; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Milestone
User/Host 6 (Total bandwidth: 36 M)
Storage FTP; SFTP; Micro SD card (support max. 256 GB)
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Cyber Security Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Certification
Certifications CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port) (Only – ZAS supports)
Audio Output 1 channel (RCA port) (Only – ZAS supports)
Alarm Input 1 channel in: 5mA 3V–5V DC (Only – ZAS supports)
Alarm Output 1 channel out: 300mA 12V DC (Only – ZAS supports)
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption -ZS:
Basic: 2.3 W (12 VDC); 3.2 W (PoE)
Max. (H.265+intelligence on +WDR +IR on): 6.4 W (12 VDC); 7.6 W (PoE)
-ZAS:
Basic: 2.3 W (12 VDC); 3.2 W (PoE)
Max. (H.265+intelligence on +WDR +IR on): 6.5 W (12 VDC); 7.7 W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40°F to +140°F)
Protection IP67; IK10
Structure
Casing Material Metal
Product Dimensions 93.4 mm × Φ122 mm (3.68″ × Φ4.80″)
Net Weight -ZS: 0.49 kg(1.08 lb)

-ZAS: 0.52 kg(1.15 lb)
Gross Weight -ZS: 0.66 kg(1.46 lb)

-ZAS: 0.68 kg(1.50 lb)

閉路電視安裝、調試、保養及維修

香港防盜（持牌主體傑成系統有限公司 KNS SYSTEM LTD）為閉路電視設備的安裝商及經銷商，保安牌照 1507、電業承辦商 029394。工作包括上門勘察、鏡頭位置及角度、走線、錄影機設定、手機 App 遙距查看及驗收，其後可提供保養及維修。

查詢 2122-9527，WhatsApp 9439-8568。保養見保安系統保養。相關服務見閉路電視安裝。
