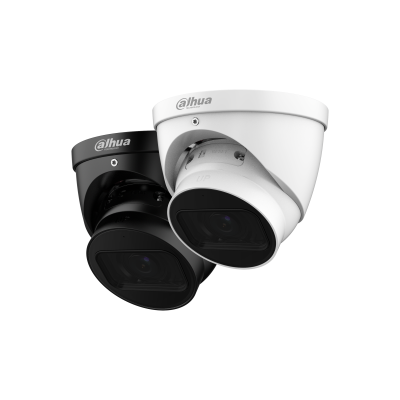

DAHUA IPC-HDW5442T-ZE

4MP IR Vari-focal Eyeball WizMind Network Camera

* The parameters and datasheets below can only be applied to 5442- Z-S3 series.

> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 4MP (2688×1520) @25/30 fps.

> Built-in IR LED, and the max. illumination distance is 40 m.

> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.

> Supports max. 512 GB Micro SD card, built-in MIC.

> 12 VDC/PoE power supply; ePoE.

> IP67 protection.

> SMD 3.0.

分類: , , , , 標籤: , ,

描述

DAHUA IPC-HDW5442T-ZE

4MP IR Vari-focal Eyeball WizMind Network Camera

Specifications

Camera
Image Sensor1/1.8″ CMOS
Max. Resolution2688 (H) × 1520 (V)
ROM4 GB
RAM1 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.0007 lux@F1.8 (Color, 30 IRE)
0.0004 lux@F1.8 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>56 dB
Illumination Distance40 m (131.23 ft) (IR)
Illuminator On/Off ControlAuto; Manual
Illuminator Number2 (IR LED)
Angle AdjustmentPan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeMotorized vari-focal
Lens Mountφ14
Focal Length2.7 mm–12 mm
Max. ApertureF1.8
Field of ViewH: 115°–47°; V: 62°–27°; D: 137°–54°
Iris ControlAuto
Close Focus Distance1.5 m (4.92 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
W57.5 m (188.65 ft)23.0 m

(75.46 ft)

11.5 m

(37.73 ft)

5.8 m

(19.03 ft)

T130.8 m (429.13 ft)52.3 m

(171.59 ft)

26.2 m

(85.96 ft)

13.1 m

(42.98 ft)

Intelligence
IVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object DetectionSmart abandoned object; smart missing object
SMD 3.0Less false alarm, longer detection distance
AI SSAYes
Face DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting
People CountingTripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat MapYes
Video MetadataMotor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
AI CodingAI H.265; AI H.264
Video Frame RateMain stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability4 streams
Resolution4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 32 kbps–16384 kbps; H.265: 12 kbps–11008 kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR140 dB
Scene Self-adaptation (SSA)Yes
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlAuto
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Image StabilizationElectronic Image Stabilization (EIS)
Smart IlluminationYes
DefogYes
Image Rotation0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
MirrorYes
Privacy Masking8 areas
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Network PortRJ-45 (10/100 Enhancement Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI
User/Host20 (Total bandwidth: 80 M)
StorageFTP; SFTP; Micro SD card (support max. 512 GB); NAS
BrowserIE: IE 9 and later

Chrome: Chrome 102 and later

Firefox: Firefox 88 and later

Management SoftwareSmartPSS Lite; DSS; DMSS
Mobile ClientiOS; Android
Cyber SecurityConfiguration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Certification
CertificationsCE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
Power Supply12 VDC/PoE (802.3af)/ePoE
Power ConsumptionBasic: 3.5 W (12 VDC); 4.5 W (PoE)
Max. (H.265+ WDR+ Intelligence on+IR on): 6.7 W (12 VDC); 8.2 W (PoE)
Environment
Operating Temperature–30 °C to +60 °C (–22 °F to +140 °F); –30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity10%–95% (RH), non-condensing
ProtectionIP67
Structure
Casing MaterialMetal
Product Dimensions108.3 mm × Φ122 mm (4.26″ × Φ4.80″)
Net Weight0.70 kg (1.54 lb)
Gross Weight0.96 kg (2.12 lb)
