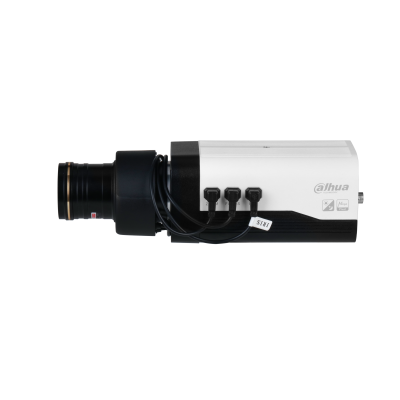

DAHUA IPC-HF71242F-Z-X

DAHUA IPC-HF71242F-Z-X

查詢價錢

12MP Box WizMind Network Camera

> 12-MP 1/1.7″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 12 MP (4000 × 3000)@25/30 fps.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Two intelligent functions can be enabled at the same time, such as face recognition+people counting, face detection+people counting and PPE Detection+IVS.

> With deep learning algorithm, it supports: face recognition, face detection, IVS, people counting, video metadata, PPE Detection, parking space management and ANPR, etc.

> Alarm: 2 in, 2 out; audio: 2 in, 1 out; RS-485, BNC; supports max. 512 G Micro SD card.

> 12 VDC/24 VAC/PoE+/ePoE power supply, 12 VDC power output, max. current 165 mA and peak current is 700 mA, easy for installation.

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

WhatsApp 查詢此型號 預約免費勘察
  • 持牌安裝（保安公司牌照 1507）
  • 原廠行貨，原廠保用
  • 全港免費上門勘察
分類: , , , , 標籤: , ,

描述

DAHUA IPC-HF71242F-Z-X

12MP Box WizMind Network Camera

Specifications



Camera
Image Sensor 1/1.7″ CMOS
Max. Resolution 4000 (H) × 3000 (V)
ROM 8 GB
RAM 4 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.0009 [email protected] (Color, 30 IRE)
0.0005 [email protected] (B/W,30 IRE)
S/N Ratio >56 dB

Lens
Lens Mount C/CS
Iris Control Type DC-Iris; P-Iris
Smart Event
IVS Abandoned object; missing object

Intelligence
EPTZ Yes
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Face Recognition
 There are two modes: General mode and counting mode.

General mode:

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting.

Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures.

Counting mode:

Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces.
PPE Detection Triggers alarms when the detected object matches

or does not match all of the configured attributes

(workwear, hat, face mask, apron, gloves, shoe covers,

boots, seatbelt, safety vest)
People Counting Tripwire people counting and people counting in area, generating and exporting report (day/month/year); queue management, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management
Heat Map Yes
ANPR ANPR: ANPR, track, priority, snapshot.

Vehicle attributes: License plate, vehicle type, vehicle color.

Other attributes: Seat belt, smoking, calling.

Suppor up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h.
Parking Space Management Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles.
Video Metadata
 Motor vehicle, non-motor vehicle, face, and human body

detection; snapshot; snapshot optimization; optimal face

snapshot upload.

Motor vehicle attributes: License plate, vehicle type,

vehicle color, vehicle logo, seatbelt, smoking, and calling.

Generates flow statistics for people, motor vehicles and

non-motor vehicles based on the direction, and exports

reports.

Non-motor vehicle attributes: Type, vehicle color,

number of people, top type and color, and hat.

Human body attributes: Top and bottom type and color,

bag, hat, gender and umbrella.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 4000 × 3000@(1–25/30 fps)
Sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
Fourth stream: 1920 × 1080@(1–25/30 fps)
Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Stream Capability 5 streams
Resolution 12M (4000 × 3000); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–16384 kbps
H.265: 32 kbps–12288 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 8 areas

Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723

Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; parking space management; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security exception; PPE detection

Network
Network Port RJ-45 (10/100/1000 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 340 M)
Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser IE: IE11 and later
Chrome: Chrome 88.0.4324.190 and later
Firefox: Firefox 47.0.2 and later
Management Software SmartPSS Lite; DSS; DMSS
Mobile Client iOS; Android
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port
RS-485 1 (baud rate range:1200 bps–115200 bps)
Audio Input 2 channels (3.5 mm JACK port)
Audio Output 1 channel (3.5 mm JACK port)
Alarm Input 2 channels in: 5 mA 3–5 VDC
Alarm Output 2 channels out: 1,000mA 30 VDC/500 mA 50 VAC
Analog Output 1 channel (CVBS output: BNC)

Power
Power Supply 12 VDC/24 VAC/PoE+ (802.3at)/ePoE
Power Consumption Basic: 8.4 W (12 VDC); 8 W (24 VAC); 6.3 W (PoE)

Max. (WDR+ intelligence on+ ICR switch): 17.1 W (12 VDC); 16.5 W (24 VAC); 15 W (PoE)

Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Storage Humidity 10–95%

Structure
Casing Material Metal + plastic
Product Dimensions 161.6 mm × 86.8 mm × 74 mm (6.36″ × 3.42″ × 2.91″) (L × W × H)
Net Weight 0.80 kg (1.76 lb)
Gross Weight 1.02 kg (2.25 lb)
