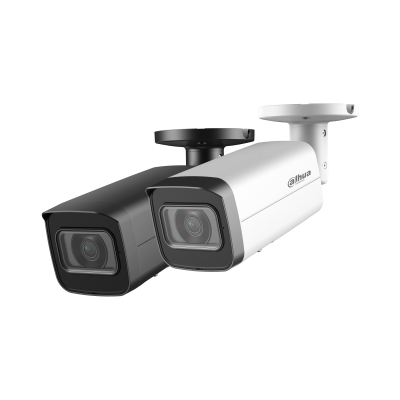

DAHUA IPC-HFW2241T-AS
2MP IR Fixed-focal Bullet WizSense Network Camera
Specifications
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8″ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 1920 (H) × 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.002 lux@F1.6(Color,30 IRE) 0.0002 lux@F1.6(B/W,30 IRE) 0 lux (Illuminator on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | up to 80 m (262.47 ft) (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto; Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 4 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 3.6 mm 6 mm 8 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | 3.6 mm: H: 88°; V: 44°; D: 105° 6 mm: H: 54°; V: 29°; D: 63° 8 mm: H: 42°; V: 23°; D: 47° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 3.6 mm: 1.3 m (4.27 ft) 6 mm: 2.6 m (8.53 ft) 8 mm: 4 m (13.12 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm | 58.9 m (193.24 ft) | 23.6 m (77.43 ft) | 11.8 m (38.71 ft) | 5.9 m (19.37 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
6 mm | 85.5 m (280.51 ft) | 34.2 m (112.20 ft) | 17.1 m (56.10 ft) | 8.6 m (28.22 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
8 mm | 121.3 m (397.97 ft) | 48.5 m (159.12 ft) | 24.3 m (79.72 ft) | 12.1 m (39.70 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576 @ (1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 2 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto; Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | 4 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in MIC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711a; G.711Mu; G.726; PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | RJ-45 (10/100 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S/Profile T); CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 6 (Total bandwidth: 36 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP;SFTP; Micro SD card (support max. 256 GB) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE; Chrome; Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; generation and importing of X.509 certification | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 1 channel (RCA port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 1 channel in: 5 mA 3–5VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 1 channel out: 300 mA 12VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 VDC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 1.9 W (12 VDC); 2.6 W (PoE) Max. (H.265+intelligence on +WDR + max. illumination): 6.6 W (12 VDC); 7.9 W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67, IK10 (optional) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 238.5 mm × Φ90.7 mm (9.39″ × Φ3.57″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.72 kg (1.90 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.95 kg (1.52 lb) |
