描述
IPC-HFW2441DG-4G-SP-B

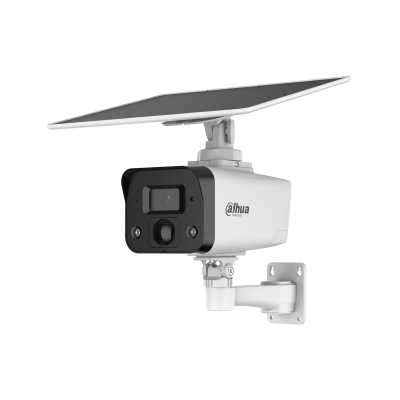

4MP Smart Dual Light Fixed-focal Bullet 4G Solar Power Network Camera
IPC-HFW2441DG-4G-SP-B 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/3" CMOS |
| Max. Resolution |
2560 (H) × 1440 (V) |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio |
>40 dB |
| Illumination Distance |
3.6 mm: Up to 30 m (98.43 ft) (IR) Up to 20 m (65.62 ft) (Warm light) |
| Illuminator On/Off Control |
Auto;Manual |
| Illuminator Number |
1 (IR LED); 1 (Warm light) |
| Angle Adjustment |
Pan: 0° to 360° Tilt: –60 °to 0° Rotation: 0° to 360° |
Lens
| Lens Type |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
3.6 mm |
| Max. Aperture |
F1.6 |
| Field of View |
3.6 mm: H: 78.4°; V: 42.4°; D: 92.4° |
| Iris Control |
Fixed |
| Close Focus Distance |
3.6 mm: 1.5 m (4.92 ft) |
| DORI Distance |
LensDetectObserveRecognizeIdentify3.6 mm 78.0 m( 255.91 ft) 31.2 m( 102.36 ft) 15.6 m( 51.18 ft) 7.8 m ( 25.59 ft)*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Intelligence
Video
| Video Compression |
H.265 |
| Video Frame Rate |
Main stream: 2560 × 1440@(1–15 fps) sub stream: 640 × 360@(1–15 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability |
2 streams |
| Resolution |
4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Bit Rate |
H.265: 32 kbps–4096 kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
DWDR |
| White Balance |
Auto |
| Gain Control |
Auto |
| Noise Reduction |
3D NR |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Smart Dual Light |
Yes |
| Privacy Masking |
4 areas |
Audio
| Built-in MIC |
Yes, built-in Mic |
| Built-in Speaker |
Yes, built-in speaker |
| Audio Compression |
G.711a; AAC-LC |
Alarm
| Alarm Event |
SD card error; SD card full; motion detection; PIR alarm; low battery alarm |
Network
| Network Port |
RJ-45 (10/100 Base-T) |
| Carrier Network System |
(-EAU/EUR): FDD-LTE: B1/B3/B5/B7/B8/B20/B28; Applicable regions: Europe, Middle East, Africa Power class 3: 23dBm ±2.7dB(-LA): FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66; Applicable regions: Latn America Power class 3: 23dBm ±2.7dBFDD-LTE: B1/B3/B5/B7/B8/B20/B28 Applicable regions: Europe, Middle East, Africa Power class 3: 23 dBm ±2.7 dB |
| Interoperability |
P2P |
| Storage |
Micro SD card (support max. 512 GB) |
| Management Software |
DMSS; DSS Pro |
| Mobile Client |
iOS;Android |
Certification
| Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
Port
Power
| Power Supply |
12 VDC |
| Power Consumption |
Ultra power saving mode: 0.036 W; Power saving mode: 0.047 W; AOV mode: 0.26 W; Performance mode: 1.33 W |
Environment
| Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity |
≤95% (RH), non-condensing |
| Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
| Storage Humidity |
≤95% (RH), non-condensing |
| Protection |
IP67 |
Structure
| Casing Material |
Plastic |
| Product Dimensions |
289.8 mm × 255.8 mm ×193.7 mm (11.41" × 10.07" × 7.62")(L × W × H) |
| Net Weight |
1357 g (2.99 lb) |
| Gross Weight |
2869 g (6.33 lb) |
Battery
| Operating Temperature |
Charging: 0 °C to +50 °C (32 °F to +122 °F) Discharging: –20 °C to +60 °C (–4 °F to +140 °F) |
| Net Weight |
550 g (1.21 lb) |
| Battery Type |
Lithium iron phosphate |
| Battery Capacity |
10000 mAh / 64 Wh |
| Battery Voltage |
6.4 V |
| Cycle Lifetime |
Ultra power saving mode (no-trigger recording): 76 days Power saving mode (30 daily alarms of under 15s each): 56days AOV mode (30 daily alarms of under 15s each): 10 days Performance mode (continuous recording): 2 days |
| Battery Life |
More than 1,000 cycles |
Solar Module
| Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
| Product Dimensions |
289.8 mm × 239.7 mm × 22.5 mm (11.41" × 9.44" × 0.89") (L ×W × H) |
| Max. Power |
10.5 W |
| Cell Type |
Monocrystalline silicon |
