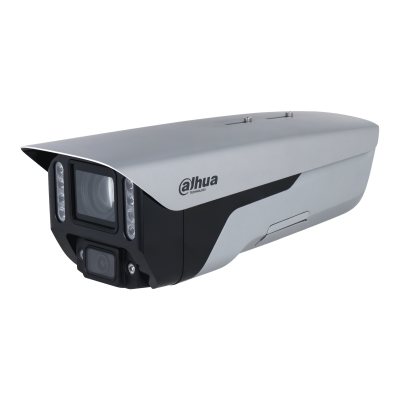

DAHUA IPC-MFW7849Y-Z4-T44

8+4MP Dual-Sight Polarlight Bullet WizMind Network Camera

> 2 lenses and 2 channels are integrated into the design.

> Adopts advanced technologies such as Hyper DoF, Illumination by Area, to achieve full coverage of different speed targets with a larger DoF distance under low illumination.

> Flexible remote debugging through the Dual-micro PTZ.

> Dual channels: Channel 1: 8-MP 1/1.2″ CMOS image sensor, low luminance, and high definition image. Channel 2: 4-MP 1/1.8″ CMOS image sensors, low luminance, and high definition image.

> Outputs max. 8 MP (3840 × 2160)@25/30 fps.

> Built-in efficient illuminator of dual light fusion, and the max. illumination distance is 120 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Multiple intelligent resources switchable: Channel 1: IVS, Face recognition, Face detection and Video metadata, Channel 2: IVS, Face recognition, Face detection, Video metadata, Crowd distribution map and People counting.

> Intelligent functions of Channel 1 and Channel 2 can be enabled at the same time.

> Hyper DoF technology: DoF and iris of the camera can be adjusted separately. With the largest iris, the camera can display the image of large DoF.

> Time-Division Exposure ensures that when the device is taking multiple snapshots of more than one targets, the quality of the snapshots will not be affected. It can also be used to adjust the brightness, speed and more of targets, to produce high quality snapshots.

> Alarm: 7 in, 3 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G Micro SD card.

> 12 VDC power supply, easy for installation.

> IP67 protection.

分類: , , , , 標籤: , ,

描述

DAHUA IPC-MFW7849Y-Z4-T44

8+4MP Dual-Sight Polarlight Bullet WizMind Network Camera

Specifications

Camera
Image SensorChannel 1: 1/1.2″ CMOS
Channel 2: 1/1.8″ CMOS
Max. ResolutionChannel 1: 3840 (H) × 2160 (V)
Channel 2: 2688 (H) × 1520 (V)
ROM8 GB
RAM4 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. IlluminationChannel 1:

0.0003 lux@F1.1(Color,30IRE)

0 lux (Illuminator on)

Channel 2:

0.0005 lux@F1.6(Color,30IRE)

0.0002 lux@F1.6(B/W,30IRE)

0 lux (Illuminator on)

S/N Ratio﹥ 56 dB
Illumination DistanceChannel 1: 80 m (262.47 ft) (warm light)

Channel 2: 120 m (393.70 ft) (IR ); 80 m (262.47 ft) (warm light)

Illuminator On/Off ControlAuto; Manual
Illuminator NumberChannel 1: 8 (Warm light)

Channel 2: 2 (illuminator with dual light fusion)

Pan/Tilt/Rotation RangeChannel 1: Tilt: ±5°
Channel 2: Tilt: ±15°
Lens
Lens TypeMotorized vari-focal
Lens MountChannel 1: CS
Channel 2: Module
Focal LengthChannel 1: 20 mm–80 mm
Channel 2: 8 mm–32 mm
Max. ApertureChannel 1: F1.1
Channel 2: F1.6
Field of ViewChannel 1: H: 27°–9° ; V: 15°–5° ; D: 31°–10° ;
Channel 2:H: 42°–15° ; V: 23°–9° ; D: 49°–17°
Iris ControlChannel 1: Auto
Channel 2: Auto
Iris Control TypeChannel 1: P-Iris

Channel 2: DC-Iris

Close Focus DistanceChannel 1: 5 m–10m (16.40 ft–32.81 ft)
Channel 2: 3 m–5.5 m (9.84 ft–18.04 ft)
Close Focus DistanceLensDetectObserveRecognizeIdentify
Channel1:

W

303.0 m (994.09 ft)121.0 m

(396.98 ft)

60.0 m

(196.85 ft)

30.0 m

(99.43 ft)

T1048.0 m (3438.32 ft)419.0 m

(1374.67 ft)

209.0 m

(685.70 ft）

104.0 m

(341.21 ft)

Channel2: W147 m (482.28 ft)59 m

(193.57 ft)

29 m

(95.14 ft)

14 m

(45.93 ft)

T395 m (1295.93 ft)158 m

(518.37 ft)

79 m

(259.19 ft）

39 m

(127.95 ft)

Smart Event
IVSAbandoned object; missing object
Intelligence
IVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Face DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Face RecognitionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting.
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 100,000 face pictures.
People CountingTripwire people counting and people counting in area, generating and exporting report (day/month/year); queue management, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management
Crowd Distribution MapCrowd distribution map; global people counting; people counting in area
Video MetadataMotor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.

Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.

Non-motor vehicle attributes: type, color, number of people, top type and color, hat.

Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
Video Frame RateChannel 1:
Main stream: 3840 × 2160@(1-25/30 fps)
sub stream: 1920 × 1080@(1-25/30 fps)
third stream: 1920 × 1080@(1-25/30 fps)
Channel 2:
Main stream: 2688 × 1520@(1-25/30 fps)
sub stream: 1920 × 1080@(1-25/30 fps)
third stream: 1920 × 1080@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability3 streams
ResolutionChannel 1: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)
Channel 2: 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)
Bit Rate ControlCBR/VBR
Video Bit RateChannel 1:
H.264: 32 kbps – 16384 kbps
H.265: 12 kbps – 11776kbps
Channel 2:
H.264: 32 kbps – 15872kbps
H.265: 12 kbps – 9472kbps
Day/NightColor/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation (SSA)Yes
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlAuto;Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Image StabilizationElectronic Image Stabilization (EIS)
Smart IlluminationYes
DefogYes
Image Rotation0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
MirrorYes
Privacy Masking4 areas
Time-Division ExposureYes
Audio
Audio CompressionG.711a; G.711Mu; PCM; G.726; G.723;
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; face recognition; video metadata; crowd density
Network
Network PortRJ-45 (10/100/1000 Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Cyber SecurityConfiguration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
InteroperabilityONVIF (Profile S/Profile G/ Profile T); CGI
User/Host20
StorageFTP; SFTP; Micro SD card (support max. 256 GB); NAS
BrowserWith plug-in:
IE: IE9 and later
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later
Without plug-in:
Edge
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later
Management SoftwareDSS Pro; DMSS
Mobile ClientiOS; Android
Function
Defog (Glass Heating)Yes
Certification
CertificationsCE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B
Port
RS-4851 (baud rate range:1200 bps–115200 bps)
Audio Input2 channels (RCA port)
Audio Output1 channel (RCA port)
Alarm Input7 channels in: 5mA 3V–5V DC
Alarm Output3 channels out: 1,000mA 30V DC/500mA 50V AC
Power
Power Supply12 VDC, 4 A
Power ConsumptionBasic: 11.5 W (12 VDC)
Max. (ICR Switch+IR intensity): 36.1 W (12 VDC)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Temperature–40 °C to +70 °C (–40 °F to +158 °F)
Operating Humidity10–95%
ProtectionIP67
Structure
Casing MaterialMetal + plastic
Product Dimensions483.4 mm × 197.7 mm × 178.5 mm (19.03″ × 7.78″ × 7.03″) (L × W × H)
Net Weight6.3 kg (13.89 lb)
Gross Weight8.5 kg (18.74 lb)
