描述

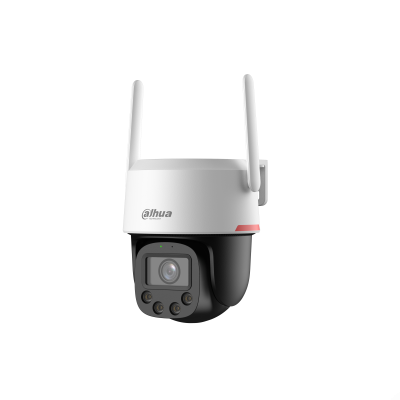

IPC-PT2449C1-ST4G-PV
4MP Outdoor Wizcolor Fixed-focal 4G Pan & Tilt Network Camera
IPC-PT2449C1-ST4G-PV 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor |
1/1.8" CMOS |
| Max. Resolution |
2560 (H) × 1440 (V) |
| Electronic Shutter Speed |
1 s–1/30,000 s |
| Min. Illumination |
0.0005 [email protected] (Color, 30 IRE); 0 lux (illuminator on) |
| Illumination Distance |
30 m (164.04 ft) (Warm light) |
| Illuminator Number |
4 (warm light) |
Lens
| Focal Length |
4 mm |
| Max. Aperture |
F1.0 |
| Field of View |
H: 97°; V: 52°; D: 114° |
PTZ
| Pan/Tilt Range |
Pan: 0° to 345°; Tilt: 0° to +90° |
Smart Event
| Human Detection |
Yes |
| Vehicle Detection |
Yes |
Video
| Video Compression |
Smart H.265+; H.264M; H.264H; Smart H.264+; H.265; H.264B; MJPEG |
| Video Frame Rate |
Main stream: 4M/1080p/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) |
| Video Bit Rate |
H264: 3,072 kbps–15,104 kbps H265: 1,280 kbps–9,216 kbps |
| Day/Night |
Color/B/W |
| WDR |
DWDR |
| Motion Detection |
Yes |
| Image Rotation |
180° |
Audio
| Audio Compression |
PCM, G.711A, G.711Mu |
| Built-in MIC |
Yes |
| Built-in Speaker |
Yes |
Network
| Network Port |
RJ-45 (10/100 Base-T) |
| Wireless Carrier Frequency Band |
EAU LTE-FDD: B1/B3/B5/B7/B8/B20/B28 TDD:B38/40/41 EUR LTE-FDD: B1/B3/B5/B7/B8/B20/B28 TDD:B38/40/41 LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 |
| Max. Transmission Power |
4G: Power class3: 23dBm±2dB |
| Interoperability |
ONVIF (Profile S & Profile G & Profile T); SDK; CGI |
| Storage |
Micro SD card (Up to 256 GB); FTP |
| Management Software |
DSS Pro; 5 Series NVR; DMSS |
| Mobile Client |
Android; iOS |
Function
Certification
Power
| Power Supply |
12 VDC,1 A ± 10% (included) |
| Power Consumption |
Basic: 3 W Max: 7.5 W (illuminator + PTZ) |
Environment
| Operating Temperature |
–30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity |
≤95% |
| Protection |
TVS 2000 V lightning proof; Waterproof and Dustproof; surge protection; voltage transient protection |
Structure
| Product Dimensions |
153.5 mm × Φ129.3 mm (6.04" × Φ5.09") |
| Net Weight |
0.66 kg (1.46 lb) |
