描述

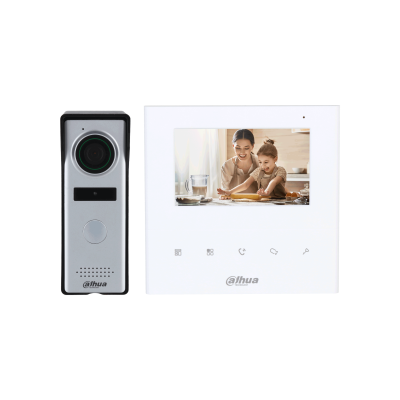

KTA04
Video Intercom KIT
KTA04 屬大華視像對講產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
DHI-VTH1010J
System
Basic
| Display |
4.3" TFT |
| Screen Resolution |
480 (H) × 272 (V) |
Function
| Communication Mode |
Analog |
Performance
General
| Color |
White |
| Power Supply |
12 VDC 1 A |
| Power Adapter |
Included |
| Installation |
Surface mount |
| Certifications |
CE/FCC |
| Accessory |
Bracket (included) |
| Dimensions |
136.00 mm × 140.00 mm × 18.30 mm (5.35" × 5.51" × 0.72") |
| Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity |
10%–95% (RH) |
| Power Consumption |
≤ 2 W (standby) ≤ 5 W (working) |
| Net Weight |
0.16 kg (0.35 lb) |
| Gross Weight |
0.42 kg (0.96 lb) |
DHI-VTO1000J
System
Basic
| Camera |
1.3 MP CMOS |
| Field of View |
Horizontal: 70° Vertical: 40° |
| WDR |
DWDR |
| Illuminator Type |
Auto IR |
| Day/Night |
ICR auto switch |
| Audio Input |
1 channel to the microphone; pickup distance 0.5 m |
| Audio Output |
1 channel to the speaker |
| Status Indicator |
1 indicator light Green: Power on |
Function
| Communication Method |
Analog |
| Unlock Mode |
Remote unlock |
Performance
Port
| Exit Button |
1 |
| Door Status Detection |
1 |
General
| Color |
Silver |
| Power Supply |
Powered by indoor monitor |
| Installation |
Surface mount |
| Certifications |
CE/FCC |
| Accessory |
Rain cover (included) |
| Dimensions |
131.45 mm × 46.00 mm × 33.80 mm (5.18" × 1.81" × 1.33") |
| Protection Grade |
IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
| Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity |
10%–95% (RH) |
| Power Consumption |
≤ 1 W (standby) ≤ 3 W (working) |
| Net Weight |
0.18 kg (0.40 lb) |
| Gross Weight |
0.38 kg (0.84 lb) |
