描述

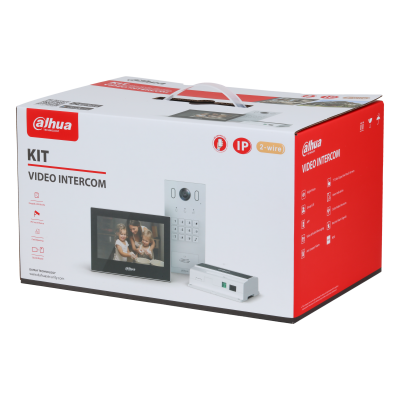

KTD04
Video Intercom KIT
KTD04 屬大華視像對講產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
Technical Specification
System(VTO)
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux OS |
| Button Type |
Mechanical |
| Interoperability |
ONVIF |
| Network Protocol |
SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
Basic(VTO)
| Camera |
1/2.9" 2 MP CMOS |
| Field of View |
H: 140°, V: 80°, D: 160° |
| WDR |
120 dB |
| Noise Reduction |
3D NR |
| Video Compression |
H264, H265 |
| Video Resolution |
Main stream: 720p, WVGA, D1, CIF Sub stream: 1080p, WVGA, D1, QVGA, CIF |
| Video Frame Rate |
25 fps |
| Light Compensation |
Auto white light |
| Day/Night |
Color/B/W |
| Audio Compression |
G.711a, G.711u, PCM |
| Audio Input |
1 |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression/digital noise reduction |
| Audio Bit Rate |
16 KHz, 16 bit |
Function(VTO)
| Communication Mode |
Digital 2-wire |
| Unlock Mode |
Card; password; remote unlock |
| Card Type |
Mifare card |
| Auto Snapshot |
Yes (SD card is inserted in the indoor monitor or door station) |
| Leave Videos |
Yes (SD card is inserted in the indoor monitor or door station) |
| Storage |
Supports Micro SD card (up to 256 GB) |
| Web Configuration |
Yes |
Performance(VTO)
| Card Reading Distance |
0 cm–3 cm (0"–1.18") |
| Casing Material |
Aluminum alloy |
Capacity(VTO)
Port(VTO)
| RS-485 |
1 |
| Wiegand |
1 |
| Alarm Input |
1 |
| Alarm Output |
1 |
| Power Output |
1 (12 V, 600 mA) |
| Door Bell |
1 |
| Exit Button |
1 |
| Lock Control |
1, normally closed by default |
| Network Port |
1 × RJ-45, 10 Mbps/100 Mbps network port |
Alarm(VTO)
General(VTO)
| Appearance Color |
Silver |
| Power Supply |
48 VDC, 0.4 A; PoE (802.3af/at) |
| Power Adapter |
Optional |
| Installation |
Surface mount (The surface mount kit comes with the surface mount bracket) |
| Certifications |
CE |
| Product Dimensions |
200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39") |
| Protection |
IK08, IP65 (Silicone sealant is needed, see the quick start guide) |
| Operating Temperature |
–40 °C to +60 °C (–40 °F to +140°F) |
| Operating Humidity |
10%–95% (RH), non-condensing |
| Operating Altitude |
Beneath 3000 m (9842.52 ft) |
| Operating Environment |
Outdoor |
| Power Consumption |
≤5 W (standby), ≤7 W (working) |
| Gross Weight |
692 g (1.53 lb) |
| Storage Humidity |
30%–75% (RH) |
| Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
| Model |
DHI-VTH2622G-W |
System (VTH)
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux OS |
| Network Protocol |
RTSP; DNS; RTP; SIP; SSH |
Basic (VTH)
| Screen Type |
Capacitive Touchscreen |
| Display Screen |
7" TFT |
| Screen Resolution |
1024 (H) × 600 (V) |
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression |
| Audio Bit Rate |
16 KHz; 16 bit |
Function (VTH)
| Communication Mode |
Digital 2-wire |
| Information Release |
Receive and view text information released by the management center. |
| DND Mode |
Do not disturb period can be set |
| Number of Extensions |
Villa: 3 extensions; Apartment: 2 extensions |
| Wi-Fi |
Yes |
| Wireless Standard |
IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range |
2.4G |
| Max Transmission Power |
≤20 [email protected] MHz |
Port (VTH)
| RS-485 |
1 |
| Alarm Input |
6 |
| Alarm Output |
1 |
| Door Bell |
Yes (Use any alarm input port) |
| Network Port |
1 × 2-wire port and 1 × RJ-45 10/100 Mbps Ethernet port (alternative) |
Performance (VTH)
General (VTH)
| Appearance Color |
Black |
| Power Supply |
48 VDC, 1.25 A |
| Power Adapter |
Optional |
| Installation |
Surface Mount |
| Certifications |
CE; FCC |
| Accessory |
Bracket and alarm ribbon cable (included) |
| Product Dimensions |
189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
| Operating Temperature |
–10 °C to +55 °C (+14 °F to 131 °F) |
| Operating Humidity |
10%–95% (RH), non-condensing |
| Operating Altitude |
Beneath 3,000 m (9,842.52 ft) |
| Operating Environment |
Indoor |
| Power Consumption |
≤2 W (Standby), ≤6 W (working) |
| Gross Weight |
575 g (1.27 lb) |
| Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity |
30%–75% (RH) |
| Model |
DHI-VTNS1001B-2 |
System (Networking Device)
| Main Processor |
Embedded Processor |
Function (Networking Device)
| Communication Mode |
2-wire |
Performance (Networking Device)
Port (Networking Device)
| Network Port |
1 × 2-wire port, 1 × 100 Mbps Ethernet port |
General (Networking Device)
| Appearance Color |
White |
| Power Supply |
48 VDC, 1–3 A |
| Power Adapter |
Optional |
| Installation |
Guide Rail Mount |
| Certifications |
CE; FCC; UL |
| Accessory |
Included |
| Product Dimensions |
131 mm × 103 mm × 40 mm (5.16" × 4.06" × 1.57") |
| Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity |
10%–95%, non-condensing |
| Operating Altitude |
0–3000 m (0–9842.52 ft) |
| Power Consumption |
≤15 W (Kit) |
| Gross Weight |
0.39 kg (0.86 lb) |
