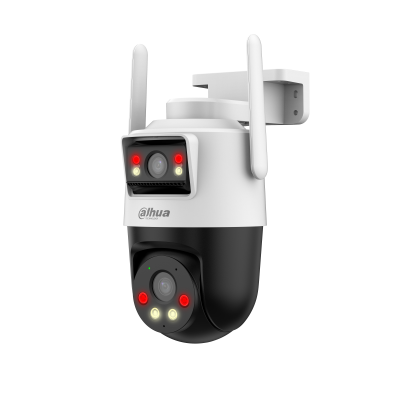

DAHUA P3D-3F-PV-4G 3+3MP Outdoor Dual-Lens Pan & Tilt 4G Camera

描述

P3D-3F-PV-4G

3+3MP Outdoor Dual-Lens Pan & Tilt 4G Camera

P3D-3F-PV-4G 屬大華閉路電視產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。

規格

Camera

Image Sensor	1/2.8" CMOS
Max. Resolution	2304 (H) × 1296 (V)
Illumination Distance	30 m (98.43 ft) (Warm light); 30 m (98.43 ft) (IR)
Illuminator Number	2 (IR); 2 (Warm light)
Focal Length	4 mm
Max. Aperture	F1.6
Field of View	H: 73.8°; V: 43.4°; D: 86.5°
Pan/Tilt Range	Pan: 0° to 290°; Tilt: –10° to +15° (Manual)

PT Lens

Image Sensor	1/2.8" CMOS
Max. Resolution	2304 (H) × 1296 (V)
Illumination Distance	30 m (98.43 ft) (Warm light); 30 m (98.43 ft) (IR)
Illuminator Number	2 (IR); 2 (Warm light)
Focal Length	4 mm
Max. Aperture	F1.6
Field of View	H: 73.8°; V: 43.4°; D: 86.5°
Pan/Tilt Range	Pan: 0° to 350°; Tilt: 0° to +90° (Electric)

Smart Event

Human Detection	Yes
Vehicle Detection	Yes

Audio and Video

Video Compression	Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H
Video Frame Rate	Main stream: 3M/1080p/720p/640 × 360@(1–15/15 fps) Sub stream 1: 640 × 360/QVGA@(1–15/15 fps)
Video Bit Rate	H264: 80 kbps–2,048 kbps H265: 32kbps–1,536 kbps
Day/Night	Auto (ICR); Color/B/W
WDR	DWDR
Motion Detection	Yes
Image Rotation	180°
Audio Compression	PCM; G.711a; G.711Mu; G.726
Built-in MIC	Yes
Built-in Speaker	Yes

Network

Wireless Carrier Frequency Band	EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
Max. Transmission Power	4G: Power class3: 23 dBm ±2 dB
Storage	Micro SD card (Supports max 256 GB)
Management Software	DMSS
Mobile Client	iOS; Android

General

Certifications	CE
Power Supply	12 VDC, 1 A ± 10%
Power Consumption	Basic: 5 W; Max: 12 W (illuminator + PTZ +sound and light warning)
Operating Temperature	–20 °C to +50 °C (–4 °F to +122 °F)
Operating Humidity	≤95%
Protection	IP66
Casing Material	Plastic
Product Dimensions	124.9 mm × 159.4 mm × 213.9 mm (4.92" × 6.28" × 8.42") (L × W × H)
Net Weight	610 g (1.34 lb)
