描述

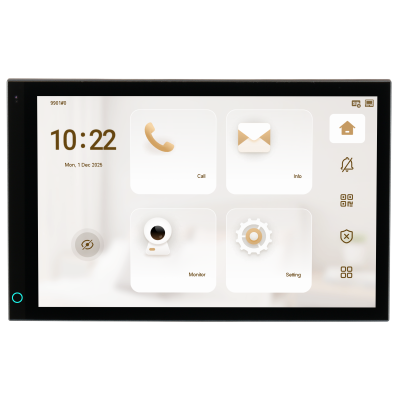

VTH5744A-WP-F
4-Wire Hybrid & Wi-Fi Indoor Monitor
VTH5744A-WP-F 屬大華視像對講產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
System
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux OS |
| Network Protocol |
IPv4;RTSP;UDP;DNS;RTP;TCP;SIP |
Basic
| Screen Type |
Capacitive Touchscreen |
| Display Screen |
10.1-inch display screen |
| Screen Resolution |
1280 (H) × 800 (V) |
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 channel |
| Audio Output |
Built-in speaker |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression/digital noise reduction |
| Audio Bit Rate |
16 KHz，16Bit |
Function
| Communication Mode |
Full digital;Analog 4-wire |
| Information Release |
Receive and view the published information from the management center |
| Elevator Control |
Residents can call the elevator through this device to their desired floor. |
| Leave Videos |
Yes (SD card is inserted in the indoor monitor or door station) |
| DND Mode |
Do not disturb period can be set |
| Number of Extensions |
Villa: 1 main VTH and 9 extensions. Apartment: 1 main VTH and 4 extensions |
| Storage |
Supports micro SD card storage (up to 512 GB) |
Network
| Wi-Fi |
Yes |
| Wireless Standard |
IEEE 802.11b/g/n/ax |
| Wireless Frequency Range |
2.4 GHz |
| Max. Transmission Power |
≤[email protected] MHz |
Port
| RS-485 |
1 |
| Alarm Input |
8 channels |
| Alarm Output |
1 channel |
| Power Output |
1 port (12 V, 200 mA) |
| Door Bell |
Yes (use the alarm input port) |
| Network Port |
1 × 10 Mbps/100 Mbps Ethernet port |
| 4-wire |
1 |
Performance
General
| Appearance Color |
Gray |
| Power Supply |
12 VDC 1.5 A Standard PoE |
| Power Adapter |
Optional |
| Installation |
Flush Mount |
| Certifications |
CE |
| Accessory |
Included: RS-485, power output cable, bracket, alarm cable, and analog cable. Optional: Power cord |
| Product Dimensions |
246.5 mm × 156.1 mm × 33.0 mm (9.70" × 6.15" × 1.30") (H × W × D) |
| Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity |
10%–95% (RH), non-condensing |
| Operating Altitude |
Below 3,000 m (9,842.52 ft) |
| Power Consumption |
≤ 4.7 W (standby), ≤ 10.4 W (working) |
| Gross Weight |
1.2 kg (2.65 lb) |
| Storage Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity |
30%–75% |
| Operating Environment |
Indoor |
