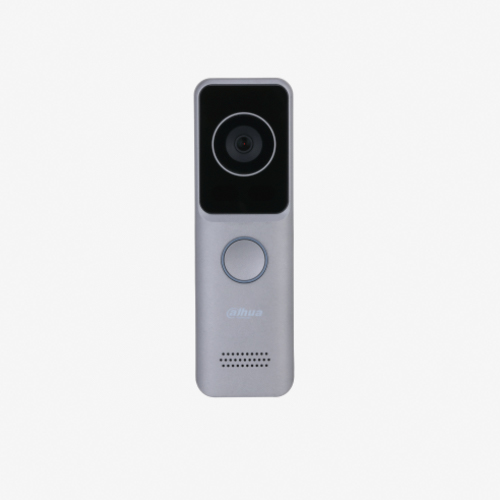

Dahua VTO2301R-P IP Villa Door Station

分類: 標籤:

描述

Dahua VTO2301R-P IP Villa Door Station

IP Villa Door Station

> Ultra slim design.
> PC and ABS material make it ideal for indoor and outdoor use.
> 1/2.8″ 2-MP HD CMOS camera.
> Offers two–way video call with indoor monitors.
> Video and voice messages from visitors can be checked on the indoor monitor.
> Video call through app.
> IR illumination and auto WDR.
> IP65 rated.
> H.264 and H.265.
> PoE power supply.

System

Main Processor

Embedded Processor

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

Basic

Camera

1/2.8″ CMOS 2-MP HD camera

Field of View

H: 110°; V: 62°; D: 133°

WDR

120 dB

Noise Reduction

3D NR; 2D NR

Video Compression

H.264; H.265

Video Resolution

Main stream: 720p, WVGA, D1, and CIF;
Sub stream: 1080p, WVGA, D1, QVGA, and CIF

Video Frame Rate

PAL: 25 fps
NTSC: 30 fps

Video Bit Rate

768 kbps–8 Mbps

Light Compensation

Auto IR

Day/Night

Auto (ICR)/Color/B/W; Color/B/W

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction

Audio Bit Rate

16 kHz, 16 bit

Function

Communication Mode

Full digital

Auto Snapshot

Yes (SD card is inserted in the indoor monitor or door station)

Leave Videos

Yes (SD card inserted in VTH/VTO is needed)

Web Configuration

Yes

Storage

Micro SD card (max. 256 GB)

Performance

Casing

PC + ABS

Port

Network Port

1 × RJ-45 10/100 Mbps Ethernet port

Alarm

Tamper Alarm

Yes

General

Appearance color

Light grey

Power Supply

12–33 VDC, 1 A ; Standard PoE

Power Adapter

Optional

Installation

Surface Mount

Certifications

CE; FCC

Accessory

Included: Alarm power ribbon cable, rain cover

Product Dimensions

160 mm × 50 mm × 30 mm (6.30″ × 1.97″ × 1.18″)

Protection

IP65

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Altitude

0 m–3,000 m (0 ft–9,842.51 ft)

Power Consumption

≤ 3.5 W (standby), ≤ 5.5 W (working)

Gross Weight

0.39 kg (0.86 lb)

Net Weight

0.17 kg (0.37 lb)
