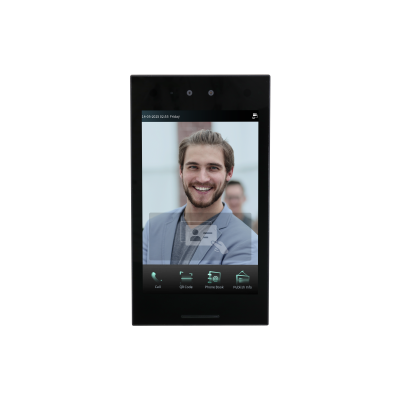

VTO9631Q
IP Face Recognition Apartment Door Station
VTO9631Q 屬大華視像對講產品。傑成系統有限公司（香港防盜）為大華產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
System
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux OS |
| Interoperability |
ONVIF; CGI |
| Network Protocol |
RTP; SIP; DNS; SSH; RTSP; RTMP; FTP; HTTP/HTTPS; ONVIF |
Basic
| Screen Type |
Capacitive Touchscreen |
| Display Screen |
10.1-inch display screen |
| Screen Resolution |
800 (H) × 1280 (V) |
| Camera |
1/2.8" 2 MP CMOS high-definition, low illumination, dual cameras |
| Field of View |
H: 65°; V: 40°; D: 73° |
| WDR |
DWDR |
| Noise Reduction |
3D NR |
| Video Compression |
H.264; H.265 |
| Video Resolution |
Main stream: 720P/D1/WVGA; Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA |
| Video Frame Rate |
PAL: 25 fps; NTSC: 30 fps |
| Video Bit Rate |
256 kbps–4,096 kbps |
| Light Compensation |
Auto IR |
| Audio Compression |
G.711a; G.711u; PCM |
| Audio Input |
1 channel |
| Audio Output |
Includes the built-in speaker and can be connected to active external speakers. |
| Audio Mode |
Two-way audio |
| Audio Enhancement |
Echo suppression/digital noise reduction |
| Audio Bit Rate |
16 kHz, 16 bit |
Function
| Communication Mode |
Full digital |
| Verification Method |
Remote; Face Recognition; Password; Card |
| Auto Snapshot |
Yes |
| Information Release |
Receive and view text information released by the management center. |
| Elevator Control |
Residents and visitors can call elevators. Permissions can also be granted to access floors through access control. |
| Leave Videos |
Yes (SD card inserted in VTO is needed) |
| Storage |
Supports Micro SD card (up to 128 GB) |
| Web Configuration |
Yes |
| Auto Registration |
Yes |
RFID
| Card Type |
IC card |
| Modulation Type |
ASK |
| Frequency Range |
13.56 MHz |
| Max. Transmission Power |
42 dBuA/m @10 m |
Performance
| Card Reading Distance |
0 cm–4 cm (IC card) |
| Face Recognition Height Range |
1.2 m–2.0 m (3.94 ft–6.56 ft) |
| Face Recognition Distance |
0.3 m–1.5 m (0.98 ft–4.92 ft) |
| Face Recognition Accuracy |
99.9% |
| Face Recognition Time |
0.2 s |
| Casing Material |
Tempered glass; Aluminum alloy |
Capacity
| Card Capacity |
100,000 |
| Face Image Capacity |
100,000 |
| User Capacity |
200,000 |
Port
| RS-485 |
1 channel |
| Wiegand |
1 channel |
| Alarm Input |
2 channels |
| Alarm Output |
2 channels |
| Power Output |
1 port (12 V, 700 mA) |
| Exit Button |
1 channel |
| Door Status Detection |
1 channel |
| Lock Control |
1 channel, open by default |
| Network Port |
1 × 10 Mbps/100 Mbps Ethernet port |
Alarm
General
| Appearance Color |
Black |
| Power Supply |
12 VDC, 3 A |
| Power Adapter |
Optional |
| Installation |
Surface Mount; Flush Mount |
| Certifications |
CE |
| Accessory |
Power supply (optional); Flush mount box (optional); Surface Mounted (optional) |
| Product Dimensions |
294.9 mm × 162.5 mm × 25.0 mm (11.61" × 6.40" × 0.98") (H × W × D) |
| Protection |
IP65 rated (Silicone sealant is required.) |
| Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity |
0%–90% (RH), non-condensing |
| Operating Environment |
Outdoor |
| Operating Altitude |
0 m–1,300 m (0 ft–4,265.09 ft) |
| Power Consumption |
≤ 8 W (standby), ≤ 10 W (working). These two values of power consumption do not contain the output power. |
| Gross Weight |
1.61 kg (3.55 lb) |
| Storage Temperature |
–20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity |
30%–75% |
