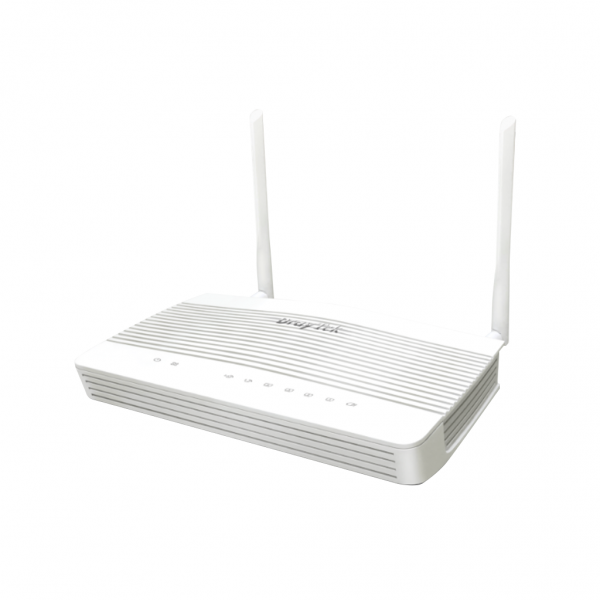

DrayTek Vigor2136 Series
2.5G VPN Security Router
Features
- VPN (Virtual Private Network)
- Firewall & Content Filter
- EasyVPN
- URL/IP Reputation
- IAM
- Hotspot Web Portal
- Virtual AP/Switch controller
- Bandwidth Management
- Mesh (Wireless model only)
- DrayDDNS
Specifications
| Performance | |
| NAT Session | 50K |
| Max. NAT (Mbps) | 2300 |
| WAN | |
| Ethernet (2.5 GbE) | 2 |
| Ethernet – LAN/WAN Switchable | √ |
| Cellular (via USB) | 2 |
| Networking | |
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
OSPF(V2/V3)
BGP
|
| Policy-based Routing |
Protocol
IP Address
Port
|
| DNS Security (DNSSEC) | √ |
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
| Local RADIUS server | √ |
| Physical | |
| Power Input | Vigor2136: DC 12V @ 0.9A Vigor2136ax: DC 12V @ 1.5A |
| Max. Power Consumption (watts) | Vigor2136: 10 Vigor2136ax: 18 |
| Dimension (mm) | 207 x 131 x 42 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
