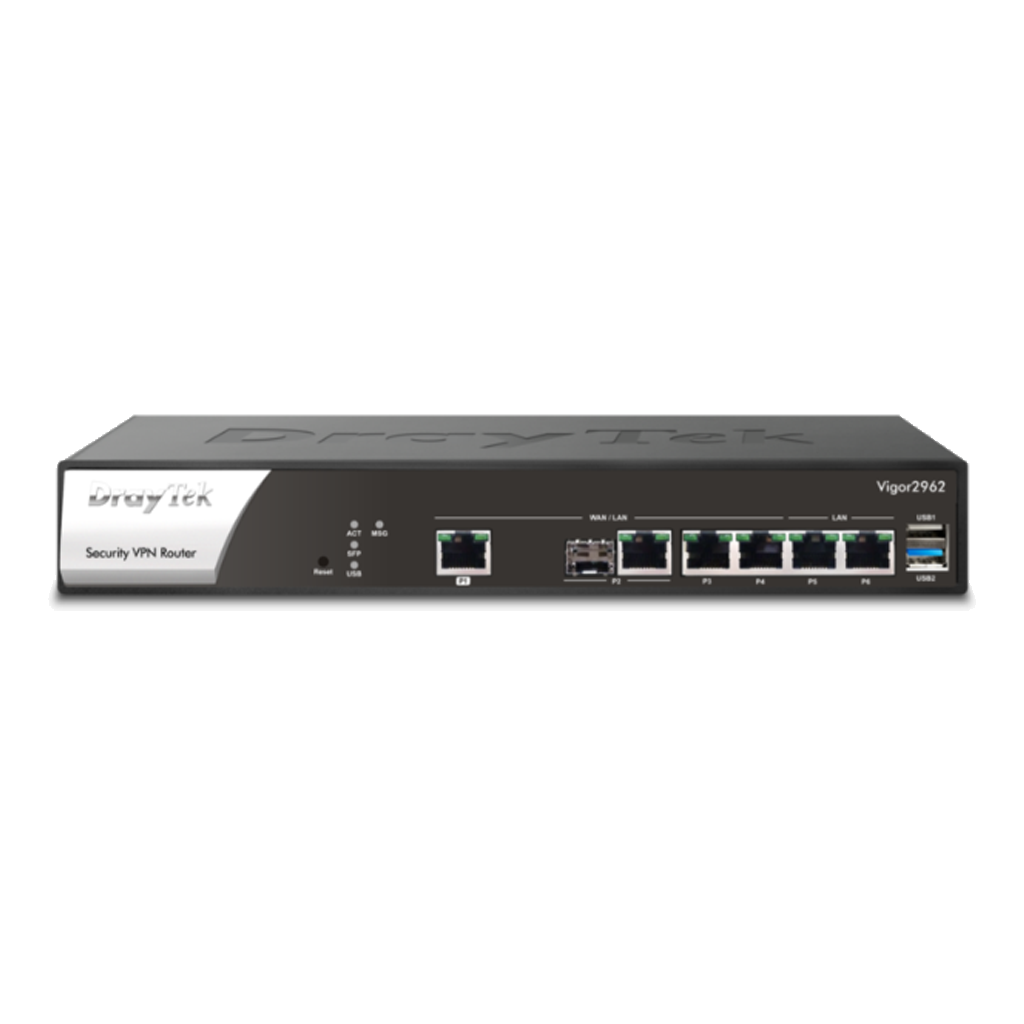

DrayTek Vigor2962
High Performance Multi-WAN Router/VPN Gateway
Features
- Load Balancing
- Bandwidth Management
- Firewall & Content Filter
- Hotspot Web Portal
- VPN (Virtual Private Network)
- SSL VPN
- EasyVPN
- DrayDDNS
- VPN Matcher
- PPPoE Server
- Central AP Management
- Central Switch Management
- Port Knocking
- VRRP
Specifications
| Performance | |
| NAT Session | 300K |
| Max. NAT with Software Acceleration (single-directional) (Mbps) | 2200 |
| WAN | |
| Ethernet (1 GbE) | 2 |
| Ethernet (2.5 GbE) | 1 |
| Ethernet – LAN/WAN Switchable | √ |
| SFP/Ethernet Combo | 1 |
| SFP/Ethernet Combo – WAN/LAN Switchable | √ |
| Networking | |
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
BGP
OSPF
|
| Policy-based Routing |
Protocol
IP Address
Port
Domain
Country
|
| Smart Action | √ |
| High Availability |
Dray High Availability
VRRP
|
| DNS Security (DNSSEC) | √ |
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
| Local RADIUS server | √ |
| Physical | |
| Power Input | AC 110-220V @ 1A |
| Max. Power Consumption (watts) | 15 |
| Dimension (mm) | 273 x 171 x 45 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
