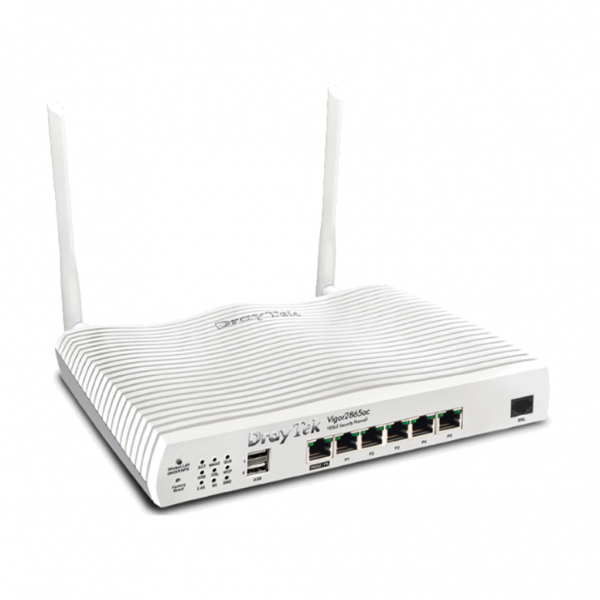

DrayTek Vigor2865 Series
VDSL2 35b Dual-WAN VPN Firewall Router
Features
- Hotspot Web Portal
- Wireless WAN (ac model only)
- Bandwidth Management
- Load Balancing
- VoIP Friendly
- 35b Supervectoring Modem
- Central AP Management
- VPN (Virtual Private Network)
- WiFi 6 (ax model only)
- SSL VPN
- Mesh (Wireless model only)
- Firewall & Content Filter
- Central Switch Management
- DrayDDNS
- VRRP
Specifications
| Performance | |
| NAT Session | 60K |
| Max. NAT (Mbps) | 800 |
| Max. NAT with Hardware Acceleration (Mbps) | 1300 |
| WAN | |
| xDSL | 1 |
| Ethernet (1 GbE) | 1 |
| Ethernet – LAN/WAN Switchable | √ |
| VDSL Standards |
ITU-T G.993.2 Annex A/B/M/Q
ITU-T G.993.5 (Vectoring)
|
| VDSL2 Profile |
8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b
|
| ADSL Standards |
ITU-T G.992.1(G.dmt)
ITU-T G.992.2 (G.lite)
T1.413 Issue 2
|
| Other Standards |
ITU-T G.998.4 (Retransmission)
|
| Band Plan |
998, 997
|
| Cellular (via USB) |
2
|
| Wireless WAN (2.4GHz + 5GHz) |
2865ac: √
2865Vac: √ |
| Networking | |
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
BGP
|
| Policy-based Routing |
Protocol
IP Address
Port
Domain
Country
|
| High Availability |
Dray High Availability
VRRP
|
| DNS Security (DNSSEC) | √ |
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
| Local RADIUS server | √ |
| SMB File Sharing (Requires external storage) | √ |
| Physical | |
| Power Input | 2865: DC 12V @ 2A 2865ac: DC 12V @ 2A 2865ax: DC 12V @ 2.5A 2865Vac: DC 12V @ 2.5A |
| Max. Power Consumption (watts) | 2865: 22.3 2865ac: 24 2865ax: 27 2865Vac: 28.1 |
| Dimension (mm) | 241 x 166 x 46 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
