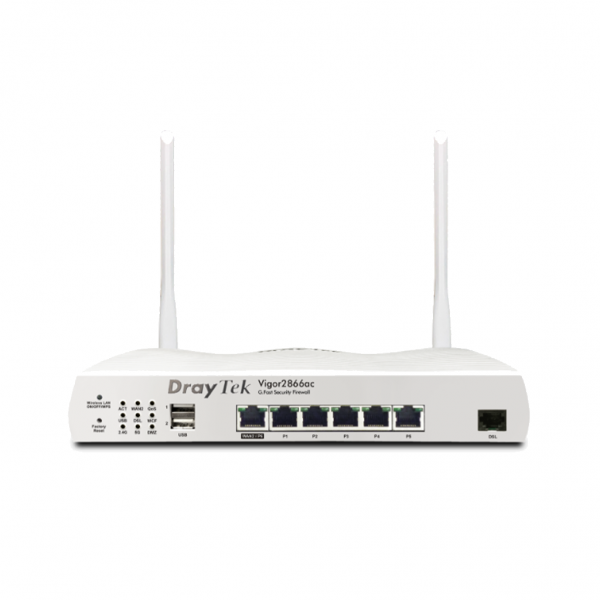

DrayTek Vigor2866 Series
The dual-WAN VPN Router with built-in G.fast modem
Features
- Load Balancing
- Hotspot Web Portal
- G.fast Modem
- Bandwidth Management
- VPN (Virtual Private Network)
- VoIP Friendly
- SSL VPN
- Central AP Management
- Firewall & Content Filter
- WiFi 6 (ax model only)
- DrayDDNS
- Mesh (Wireless model only)
- Wireless WAN (ac model only)
- Central Switch Management
Specifications
| Performance | ||||
| NAT Session | 60K | |||
| Max. NAT (Mbps) | 800 | |||
| Max. NAT with Hardware Acceleration : Single WAN (Mbps) | 940 | |||
| Max. NAT with Hardware Acceleration : Dual WAN (Mbps) | 1800 | |||
| WAN | ||||
| xDSL | 1 | |||
| Ethernet (1 GbE) | 1 | |||
| Ethernet – LAN/WAN Switchable | √ | |||
| VDSL Standards |
ITU-T G.993.2 Annex A/B/M/Q
ITU-T G.993.5 (Vectoring)
|
|||
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b | |||
| G.fast Profile | 106Mhz, 212Mhz | |||
| ADSL Standards |
ITU-T G.992.3 ADSL2 (AnnexA only)
ITU-T G.992.5 ADSL2+ (G.adslplus)
|
|||
| Other Standards | ITU-T G.998.4 (Retransmission) | |||
| Band Plan | 998, 997 | |||
| Cellular (via USB) | 2 | |||
| Wireless WAN (2.4GHz + 5GHz) | 2866ac: √ 2866Vac: √ |
|||
| Networking | ||||
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
BGP
|
|||
| Policy-based Routing |
Protocol
IP Address
Port
Domain
Country
|
|||
| High Availability |
Dray High Availability
|
|||
| DNS Security (DNSSEC) | √ | |||
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
|||
| Local RADIUS server | √ | |||
| SMB File Sharing (Requires external storage) | √ | |||
| Physical | ||||
| Power Input | 2866: DC 12V @ 2A 2866ac: DC 12V @ 2A 2866ax: DC 12V @ 2.5A 2866Vac: DC 12V @ 2.5A |
|||
| Max. Power Consumption (watts) | 2866: 22.8 2866ac: 24 2866ax: 28.2 2866Vac: 28.8 |
|||
| Dimension (mm) | 241 x 166 x 46 | |||
| Operating Temperature | 0 to 45°C | |||
| Storage Temperature | -25 to 70°C | |||
| Operating Humidity (non-condensing) | 10 to 90% | |||
