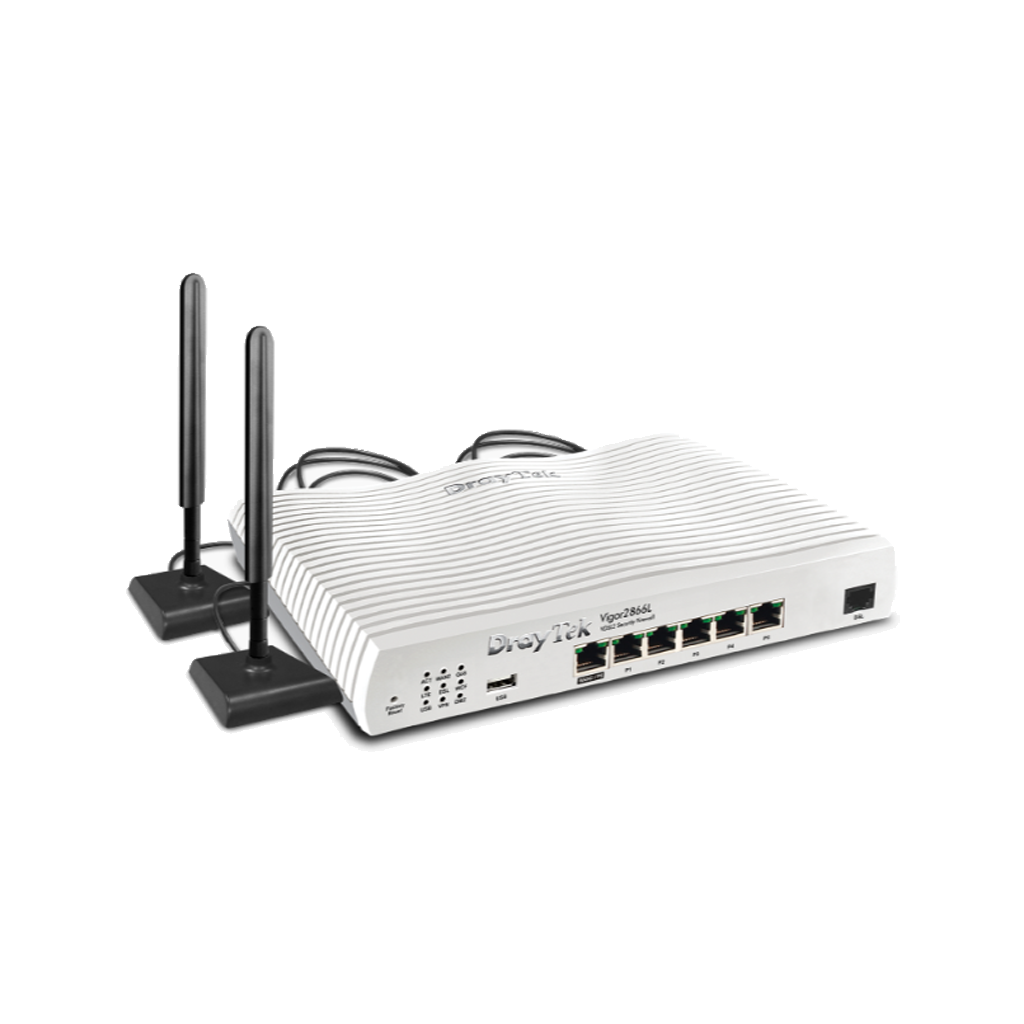

DrayTek Vigor2866 LTE Series
The dual-WAN VPN Router with built-in G.fast modem
Features
- Embedded SIM Slot
- Wireless WAN (ac model only)
- Load Balancing
- Hotspot Web Portal
- G.fast Modem
- Bandwidth Management
- VPN (Virtual Private Network)
- Central AP Management
- SSL VPN
- Mesh (Wireless model only)
- Firewall & Content Filter
- Central Switch Management
- DrayDDNS
Specifications
| Performance | |
| NAT Session | 60K |
| Max. NAT (Mbps) | 800 |
| Max. NAT with Hardware Acceleration : Single WAN (Mbps) | 940 |
| Max. NAT with Hardware Acceleration : Dual WAN (Mbps) | 1800 |
| WAN | |
| xDSL | 1 |
| Ethernet (1 GbE) | 1 |
| Ethernet – LAN/WAN Switchable | √ |
| VDSL Standards |
ITU-T G.993.2 Annex A/B/M/Q
ITU-T G.993.5 (Vectoring)
|
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a, 35b |
| G.fast Profile | 106Mhz, 212Mhz |
| ADSL Standards |
ITU-T G.992.3 ADSL2 (AnnexA only)
ITU-T G.992.5 ADSL2+ (G.adslplus)
|
| Other Standards | ITU-T G.998.4 (Retransmission) |
| Band Plan | 998, 997 |
| Cellular (via USB) | 1 |
| Cellular (Built-in) | 4G |
| Wireless WAN (2.4GHz + 5GHz) | 2866Lac: √ |
| Networking | |
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
BGP
|
| Policy-based Routing |
Protocol
IP Address
Port
Domain
Country
|
| High Availability |
Dray High Availability
|
| DNS Security (DNSSEC) | √ |
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
| Local RADIUS server | √ |
| SMB File Sharing (Requires external storage) | √ |
| Physical | |
| Power Input | 2866L: DC 12V @ 2A 2866Lac: DC 12V @ 2.5A |
| Max. Power Consumption (watts) | 2866L: 24 2866Lac: 27.6 |
| Dimension (mm) | 241 x 166 x 46 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
