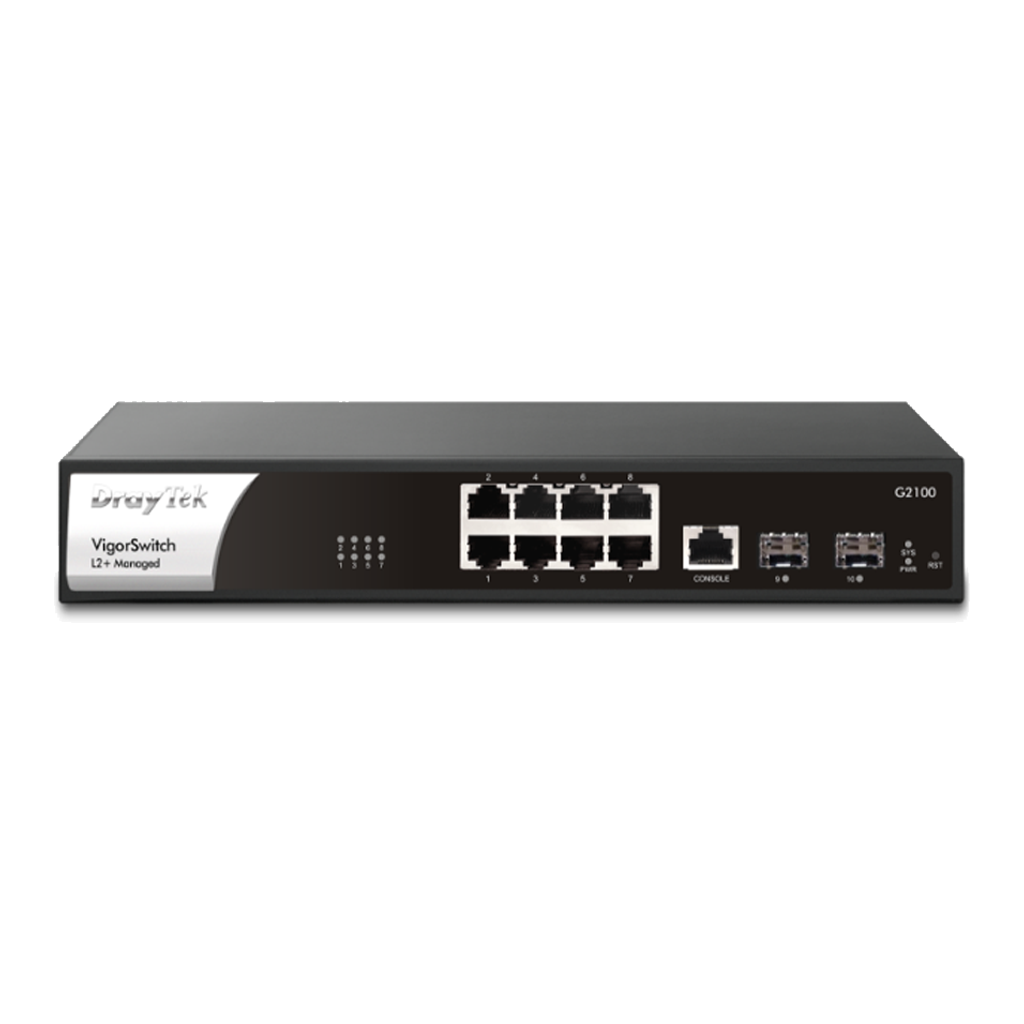

DrayTek VigorSwitch G2100
10-Port Layer 2+ Managed Switch
Features
- Auto Surveillance & Voice VLAN
- IPv6 Ready
- ONVIF-Friendly
- Web-Based GUI
- Wire-Speed VLAN Routing
- Multiple Admin Accounts
- IP Conflict Prevention
- Central Switch Management
- Access Control
- Energy-Efficient Ethernet
- QoS (Quality of Service)
- LLDP-MED
Specifications
| Performance | |
| Buffer Size (Mbit) | 4.1 |
| Switching Capacity (Gbps) | 20 |
| Forwarding Rate (64 bytes)(Mpps) | 14.88 |
| MAC Address Table | 8K |
| Max. Jumbo Frame (KB) | 9 |
| L3 Routing Table | √ |
| Ports | |
| 1 GbE | 8 |
| SFP (1G) | 2 |
| Console (RJ-45) | 1 |
| Spanning Tree | |
| STP | √ |
| RSTP | √ |
| MSTP | √ |
| Physical | |
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 0.7A |
| Max. Power Consumption (watts) | 18 |
| Dimension (mm) | 270 x 181 x 44 |
| Weight (kg) | 1.78 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
