Description

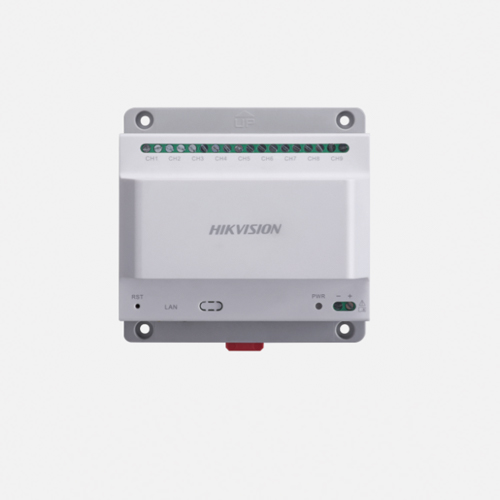

HIKVISION DS-KAD709 Two Wire Controller

Two Wire Controller

• 2-wire IP distributor
• 9 2-wire cascade interfaces with device power supply
• 1 network interface, 1 Reset button
• 24 VDC power supply
• Industrial design and DIN rail mount supported

General

• Interface Number- 1, 10/100M Interface
• Interface Type- 9-ch 2-wire Interface
• Power Supply- 24 VDC
• Power Consumption- 60 W
• Working Temperature- -10 ℃ to 55 ℃
• Working Humidity- 10% to 90%, No Condensing
• Dimensions- 112.2 mm x 111 mm x 66 mm (4.42″ × 4.37″ × 2.60″)
