描述

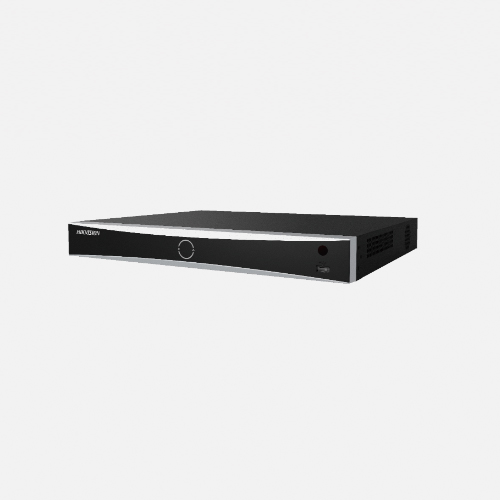

海康威視 DS-7608NXI-K2/8P 是 8 路 PoE 網絡錄影機，接收頻寬 80 Mbps，支援人臉比對（最多 16 個人臉庫、共 20,000 張相）及 8 路人車分析，HDMI 最高 4K 輸出。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、錄影機及硬碟容量。
Facial Recognition
- Facial Detection And Analytics：Face picture comparison, human face capture, face picture search
- Face Picture Library：Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection And Analytics Performance：1-ch human face capture
- Face Picture Comparison：4-ch face picture comparison alarm
Motion Detection 2.0
- Human/Vehicle Analysis：8-ch
Video And Audio
- IP Video Input：8-ch
- Incoming Bandwidth：80 Mbps
- Outgoing Bandwidth：160 Mbps
- HDMI Output：1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output：1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode：HDMI/VGA independent output
- CVBS Output：N/A
- Audio Output：1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Two-Way Audio：1-ch, RCA (Linear, 1 KΩ)
Decoding
- Decoding Format：H.265/H.265+/H.264+/H.264
- Recording Resolution：12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback：8-ch
- Decoding Capability：
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
- Stream Type：Video, Video & Audio
- Audio Compression：G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
- Remote Connection：128
- Network Protocol：TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface：1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface：8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power：≤ 80 W
- Standard：IEEE 802.3af/at
Auxiliary Interface
- SATA：2 SATA interfaces
- Capacity：Up to 10 TB capacity for each HDD
- USB Interface：Front panel: 2 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out：4/1
General
- Power Supply：48 VDC, 2.5 A
- Consumption：≤ 15 W (without HDD, and PoE off)
- Working Temperature：-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity：10% to 90%
- Dimension (W × D × H)：
385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
≤ 3 kg (without HDD, 6.6 lb.)
Certification
- FCC：Part 15 Subpart B, ANSI C63.4-2014
- CE：EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
