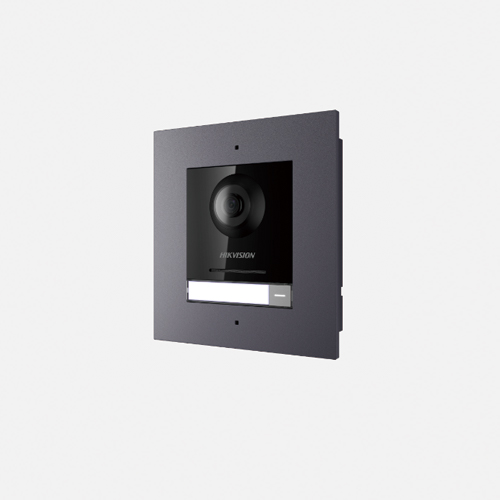

HIKVISION DS-KD8003/Flush KD8 Series Pro Modular Door Station

分類: 標籤:

描述

HIKVISION DS-KD8003/Flush KD8 Series Pro Modular Door Station

KD8 Series Pro Modular Door Station

  • Modular door station for villa
  • DS-KD8003 with its flush mouting accessories
  • IP65 (DS-KD8003+DS-KD-ACF1/Plastic)
  • 2 MP HD video intercom function
  • Supports sub-modules access
  • Easy to and extend

System Parameters

  • Operating System- Embedded Linux operation system
  • ROM- 16MB
  • RAM- 256MB
  • CPU- Embedded MCU Processor

Video Parameters

  • Lens- 1
  • Resolution- Main stream : 1920 × 1080, Sub stream : 720 × 480
  • FOV- Horizontal: 180° Vertical: 96°
  • WDR- Support
  • Supplement Light- IR supplement
  • Video Compression Standard- H.264

Audio Parameters

  • Audio Compression Standard- G.711 U
  • Audio Input- Built-in omnidirectional microphone
  • Audio Output- Built-in loudspeaker (More than 85 dB within 20 cm)
  • Audio Compression Bitrate- 64 Kbps
  • Audio Quality- Noise suppression and echo cancellation
  • Volume Adjustment- Adjustable

Capacity

  • Linked Network Camera Capacity- 100

Network Parameters

  • Communication Protocol- TCP/IP, RSTP
  • Wired Network- 10/100 Mbps self-adaptive Ethernet
  • Wi-Fi Standard- /
  • Bluetooth Version- /
  • 3G/4G Standard- /

Device Interfaces

  • Alarm Input- 4
  • Network Interface- 1
  • TAMPER- 1
  • Exit Button- 2
  • RS-485- 1
  • USB- 0
  • Wiegand- 0
  • TF Card- 0
  • Alarm Output- 0
  • Lock Control- 2
  • Door Contact Input- 2
  • Power Interface- 1

Performances

Multi-Factor Authentication- 2000

General

  • Button- 1
  • Installation- Flush mounting
  • Indicator- Without package: 345 g, With package: 840 g
  • Protective Level- IP65
  • Working Temperature- -40° C to +55° C(-40° F to 131° F)
  • Working Humidity- 10% to 95%
  • Dimensions- Door station:98 mm × 99.8 mm × 43.9 mm (3.86″ ×3.93\” × 1.73\”), Cover:134 × 124 × 4 mm(5.28 × 4.88\” ×0.16\”), Gang box:134 × 135 × 56 mm(5.28 × 5.31\” ×2.20\”)”
  • Battery- /
  • Application Environment- Outdoor
  • Power Consumption- ≤ 10 W
  • Language- English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
