描述
海康威視 DS-KH6320-WTE1 是 KH6 系列 IP 室內機，7 吋觸控螢幕，解像度 1024 × 600，標準 PoE 供電，可於 TF 卡儲存留言及截圖，並可經手機 App 遙距開門。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：視像對講系統、海康威視閉路電視安裝。

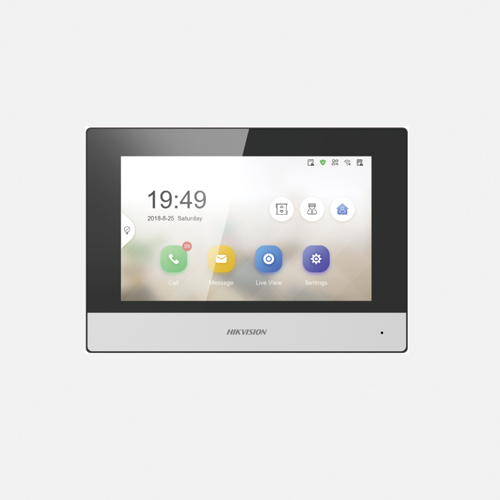

HIKVISION DS-KH6320-WTE1 KH6 Series IP-Based Indoor Station
KH6 Series IP-Based Indoor Station
- New UI V2.0: User friendly design
- 7-inch colorful touch screen with resolution 1024 × 600
- Standard PoE
- Stores messages and capture pictures in the TF card
- Remote unlocking via the client software or the mobile client
- Views live videos of door stations and linked cameras
System Parameters
- Operating System- Embedded Linux operation system
- ROM- 32 MB
- RAM- 128 MB
- CPU- Embedded processor
Display Parameters
- Screen Size- 7-inch colorful TFT screen
- Operation Method- Capacitive touch screen
- Type- Colorful TFT screen
- Resolution- 1024 × 600
Video Parameters
- Lens- /
- Resolution- /
- FOV- /
- WDR- /
- Video Compression Standard- DS-KH6320-WTE1
- Focal Length- /
Audio Parameters
- Audio Compression Standard- G.711 U
- Audio Input- Built-in omnidirectional microphone
- Audio Output- Built-in loudspeaker
- Audio Compression Bitrate- 64 Kbps
- Audio Quality- Noise suppression and echo cancellation
- Volume Adjustment- Adjustable
Capacity
- Event Capacity- 200
- Notice Capacity- 16
- Linked Indoor Extensions Capacity- 5
- Linked Doorphone Capacity- 8
Network Parameters
- Communication Protocol- TCP/IP, SIP, RTSP
- Wired Network- 10/100 Mbps self-adaptive
- Wi-Fi Standard- Wi-Fi 802.11 b/g/n
- Bluetooth Version- /
- 3G/4G Standard- /
- Zigbee- /
Device Interfaces
- Alarm Input- 8-ch alarm inputs
- Network Interface- 1 RJ-45 10/100 Mbps self-adaptive
- TAMPER- /
- RS-485- 1
- USB- /
- TF Card- Max to 32 G, SD 2.0 or lower version
- Alarm Output- 2
- Power Interface- 1
General
- Button- 0
- Installation- Surface mounting
- Indicator- With package: 683 g, Without package: 355 g
- Protective Level- /
- Working Temperature- -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity- 10% to 90%
- Dimensions- 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
- Battery- /
- Application Environment- Indoor
- Power Consumption- ≤ 6 W
- Language- English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek
