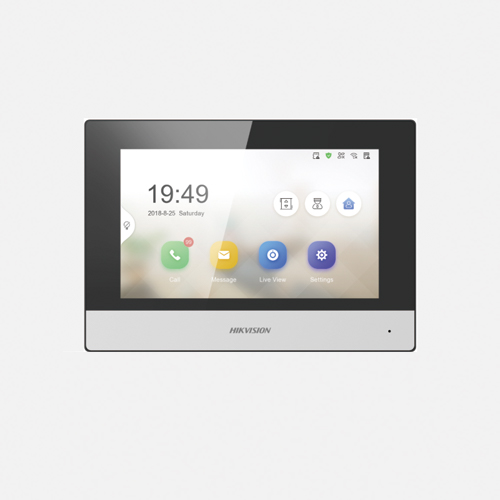

HIKVISION DS-KH6320-WTE2 Two wire indoor stations

Two wire indoor stations

• 2-wire IP indoor station
• 7“ capacitive touch-screen, Wi-Fi
• TF card support, max t o 32G
• 8-ch alarm input, 2 × alarm output, 1 × RS485
• Remote unlocking via the client or APP
• Views live videos of door stations and linked cameras

Display Parameters

• Size- 7-inch
• Operation Method- Capacitive touch
• Type- TFT LCD

Video Parameters

• Lens- Not supported.
• FOV- Not supported.
• Pixel- Not supported.

Audio Parameters

• Audio Quality- Noise suppression and echo cancellation

Network Parameters

• Communication Protocol- TCP/IP, SIP, RTSP
• Wired Network- 10/100 Mbps self-adaptive
• Wi-Fi- Wi-Fi 802.11 b/g/n
• Bluetooth- Not supported.
• Zigbee- Not supported.

Device Interfaces

• Network Interface- 1 RJ-45 10/100 Mbps self-adaptive
• Power Interface- 1

General

• Button- 0
• Installation- Surface mounting
• Indicator- 0.4KG
• Protective Level- Not supported
• Power Supply Method- Two-wire
• Working Temperature- -10 °C to 50 °C (-14 °F to 122 °F)
• Working Humidity- 0% to 90%
• Dimensions- 200 mm × 140 mm × 15.1 mm (7.87″ ×5.51 × 0.59\”)
• Battery- Not supported.
• Application Environment- Indoor
• Power Consumption- ≤ 6 W
