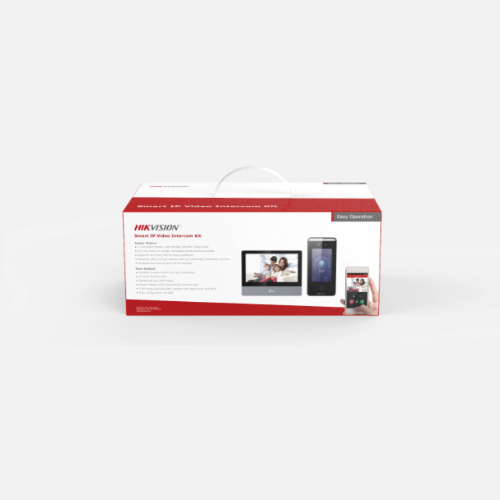

HIKVISION DS-KIS901-P Facial IP Intercom Kit

Facial IP Intercom Kit

• Video Intercom Network Bundle

Face Recognition Terminal/Audio

• Audio Input- Built-in omnidirectional microphone
• Audio Output- Built-in loudspeaker
• Volume Adjustment- Adjust via device or client

Face Recognition Terminal/Authentication

• Card Type- Mifare 1
• Card Reading Distance- 0 to 3 cm
• Card Reading Duration- < 1 s
• Face Recognition Duration- < 0.2 s
• Face Recognition Distance- 0.3 to 1.5 m

Face Recognition Terminal/Camera

• Pixel- 2 MP
• WDR- Support
• Lens- 2
• Video Standard- PAL (Default) and NTSC

Face Recognition Terminal/Capacity

• Card Capacity- 1500
• Face Capacity- 1500
• Event Capacity- 150000

Face Recognition Terminal/Function

• Face Antispoofing- Support
• Live View- Supports live view on the platform, H.264
• Face Recognition- Supports face recognition in low illumination
• Access Control Management- Support multiple authentication methods

Face Recognition Terminal/General

• Protection Level- IP65
• Power Supply- 12 VDC, 2A
• Working Temperature- -30 °C to 60 °C (-22 °F to 140 °F)
• Working Humidity- 0 to 90% (No condensing)

Face Recognition Terminal/Interfaces

• Network Interface- 1, RJ45
• RS-486- 1
• Wiegand- Wiegand 26 and Wiegand 34
• Lock Output- 1
• Exit Button- 1
• Door Contact Input- 1
• Power Interface- 1
• TAMPER Switch- 1
• USB- 1, USB 2.0

Face Recognition Terminal/Network

• Wired Network- 10/100/1000 Mbps self-adaptive
• Communication Protocol- EHome 5.0

Face Recognition Terminal/Screen

• Size- 4.3-inch
• Resolution- 800 × 480
• Operation Method- Capacitive touch screen

Face Recognition Terminal/System Parameters

• Operation System- Embedded Linux operation system

Indoor Station/System Parameters

• Operation System- Embedded Linux operation system
• Memory- 128 MB
• Flash- 32 MB

Indoor Station/Display Parameters

• Display Screen- 7-inch colorful IPS LCD
• Display Resolution- 1024 × 600
• Operation Method- Capacitive touch screen, physical button

Indoor Station/Audio Parameters

• Audio Input- Built-in omnidirectional microphone
• Audio Output- Built-in loudspeaker
• Audio Quality- Noise suppression and echo cancellation
• Audio Compression Standard- G.711 U
• Audio Compression Rate- 64 Kbps

Indoor Station/Network Parameters

• Wired Network- 10/100 Mbps self-adaptive
• Wireless Network- Wi-Fi 802.11 b/g/n
• Protocol- TCP/IP, SIP, RTSP
• Network Interface- 1 RJ-45 10/100 Mbps self-adaptive
• Alarm Input- 8-ch alarm inputs
• I/O Output- 2
• TF Card- Max to 32 G, SD 2.0 or lower version
• RS-485- Supported

Indoor Station/General

• Power Supply- IEEE802.3af, standard PoE, 12 VDC/1 A
• Power Consumption- ≤ 7 W
• Working Temperature- -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity- 10% to 90%
• Dimension (L X W X H)- 180 mm × 140 mm × 22.4 mm (7.09″ ×5.51″ × 0.88″)
• Power Supply Via Detector- 12 V, 200 mA, 899 g (with packaging), 355 g (without packaging)
