描述

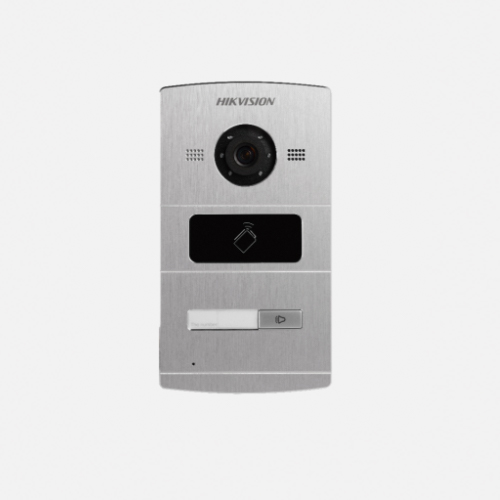

HIKVISION DS-KV8102-IM 1, 2 or 4 Button Metal Villa Door Station

1, 2 or 4 Button Metal Villa Door Station

• Villa Door Station, Aluminum alloy, 1-ch Indoor station access
• 1.3 MP camera, IR Supplement
• RS-485, 1 physical button, 4-ch alarm input,1-ch alarm output
• IP65, 12 VDC.

System Parameters

• Processor- High-Performance Embedded SOC Processor
• Operation System- Embedded Linux Operation System

Network Parameters

• Ethernet- 10/100 Mbps Self-Adaptive Ethernet
• Network Protocol- TCP/IP, RTSP

Device Interfaces

• Network Interface- 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• I/O Input- 4
• I/O Output- 1
• RS-485- 1 RS-485 Half-Duplex Port

General

• Power Supply- 24 VDC, Power 12 VDCOver Network Cable (DS-KAD606, DS-KAD612)
• Power Consumption- ≤12 W
• Working Temperature- -40° C to +60° C (-40° F to 140° F)
• Working Humidity- 10% to 90%
• IP Protection Level- IP65
• Indoor Station Access Amount- 1
• Certification- FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
• Dimensions(L × W × H)- 182 mm × 100 mm × 33 mm (7.17″ × 3.94″ × 1.30″)
• Material- Aluminum Alloy
