Description

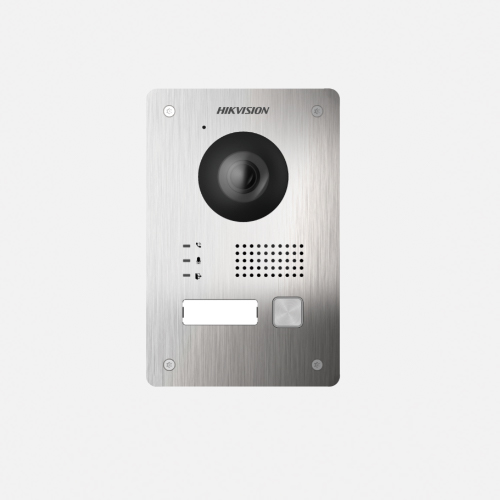

HIKVISION DS-KV8103-IMPE2 Two wire outdoor stations

Two wire outdoor stations

• High quality imaging with 2 MP resolution
• Easy, Cost-Efficient Installation
• User Friendly Design, Name tag, Communication status LED indicator
• IP65 water resistant, preventing water ingress for outdoor use



System Parameters

• Operating System- Embedded Linux operation system
• ROM- 32 MB
• RAM- 256 MB
• CPU- Embedded MCU Processor

Display Parameters

• Screen Size- /
• Operation Method- Not supported.
• Type- /
• Resolution- /

Video Parameters

• Lens- 2MP HD camera
• Resolution- Main stream: 1920 × 1080p, 720p, Sub stream: 704 × 576
• FOV- Horizontal: 144° Vertical: 95°
• WDR- Support
• Supplement Light- Low illumination IR supplement mode:3 m
• Video Compression Standard- H.264

Audio Parameters

• Audio Compression Standard- G.711 U, G.711 A
• Audio Input- Built-in omnidirectional microphone
• Audio Output- Built-in loudspeaker
• Audio Compression Bitrate- 64 Kbps
• Audio Quality- Noise suppression and echo cancellation
• Volume Adjustment- Adjustable

Capacity

• User Capacity- /
• Face Capacity- /
• Fingerprint Capacity- /
• Event Capacity- 200
• Linked Indoor Station Capacity- 500

Network Parameters

• Communication Protocol- TCP/IP, RSTP
• Wired Network- Support
• Wi-Fi Standard- /
• Bluetooth Version- /
• 3G/4G Standard- /

Device Interfaces

• Alarm Input- 2
• Network Interface- 1 10/100 Mbps self-adaptive Ethernet
• TAMPER- 1
• Exit Button- 2
• RS-485- /
• USB- /
• Wiegand- /
• TF Card- /
• Alarm Output- 12 V/1 A output
• Lock Control- 2
• Door Contact Input- 2
• Power Interface- 1

General

• Button- 1
• Installation- Surface mounting, flush mounting
• Indicator- 3, 476 g
• Protective Level- IP65
• Working Temperature- -40° C to +60° C(-40° F to 140° F)
• Working Humidity-10% to 95%
• Dimensions- 169 × 110 × 31 mm (6.54” × 4.33” × 1.22”)
• Battery- /
• Power Supply- From indoor station
• Application Environment- Outdoor
• Power Consumption-＜ 10 W

Face Recognition Terminal/General

• Power Supply Method- From indoor station
