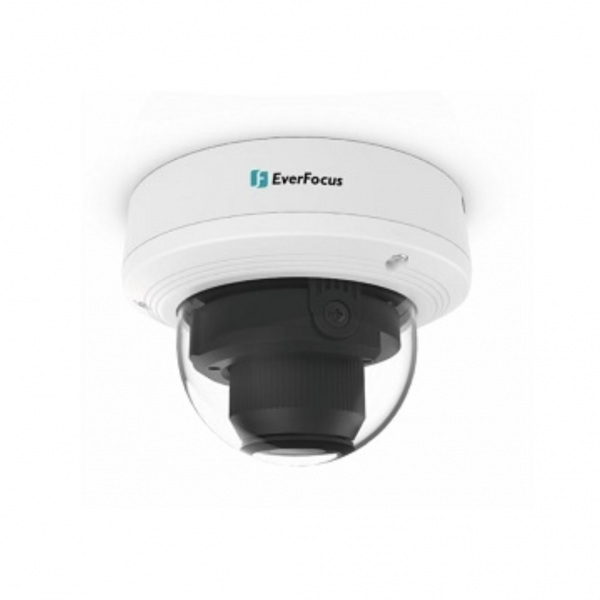

EverFocus EHN1550-SG
5-Megapixel IR & WDR, Outdoor Dome Network Camera
Features
• 5MP Progressive scan CMOS sensor
• Equipped with 2.8~12mm motorized lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 45m / 148ft.
• Supports ONVIF
• Weather-proof IP66 rated
• Supports PoE and 12VDC
Specifications
| Pickup Device | 1/2.7″, 5.0 megapixel, progressive scan, CMOS |
| Lens | 2.8~12mm motorized lens |
| FOV | Horizontal: 92.62 ~27.3°, Vertical: 66.26 ~ 15.1°, Diagonal: 127.88~ 28.9° |
| F No. | F1.8-3.3 |
| Minimum Illumination | Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON |
| Day/Night | IR cut filter with auto switch（Day/Night/Auto/Schedule） |
| Shutter | 1/5 ~ 1/20000s |
| Video Compression | H.265/H.264 |
| Frame Rate | Main Stream 5MP(2592*1944), 4MP(2592×1520),3MP(2304×1296), 1080P(1920×1080), 720P(1280×720), Sub Steam 720P(1280×720), VGA(640×480),QVGA(320×240) Mobile Stream VGA(640×480), QVGA（320×240） |
| S/N Ratio | ≥ 39db (AGC Off) |
| AGC | Supported |
| Triple Streams | Supported |
| AWB | Supported |
| WDR | DWDR |
| 3DNR | Supported |
| Audio | 1 input (RCA), 1 output (RCA) |
| SD Card Slot | Micro SD slot, up to 256GB |
| Password Protection | Supported |
| Alarm Input / Output | Supported, 1 input, 1 output |
| Reset Button | Supported |
| Supported Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Video Analytics | Supported |
| IR Distance | up to 45m / 148ft |
| Power Supply | DC 12V±25% |
| Power over Ethernet | PoE (IEEE 802.3af) |
| Max. Power Consumption | 7W |
| Humidity | less than ≤ 95% RH |
| Operating Temperature | -30～+55°C |
| Dimensions (Φ) x (H) | Ø148.7x109mm |
| Weight | appr 960g |
| Weather Resistance | IP66 |
| Vandal Resistance | IK10 |
